DC to 18GHz Coaxial/RF Test Communication Cable with SMA/N/TNC Connector
JML-Cable-18003 series test cable assemblyFeatures: DC to 18GHz, three-layer shielding structure, good Amplitude stability, stable performance, reliable and durableTypical applications: RF transmission in signal transmission, laboratory testing, production line testing, etc.StructureInner Conductor:......
Send Inquiry
Product Description

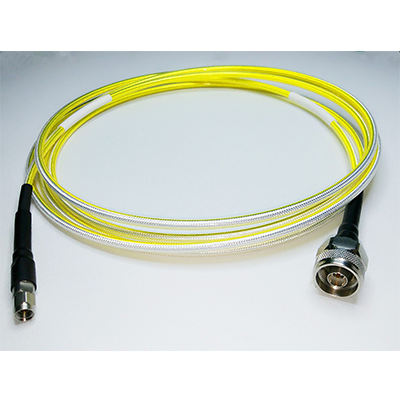

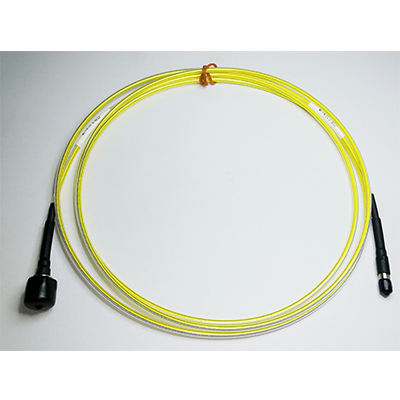

JML-Cable-18003 series test cable assembly
Features: DC to 18GHz, three-layer shielding structure, good Amplitude stability, stable performance, reliable and durable
Typical applications: RF transmission in signal transmission, laboratory testing, production line testing, etc.

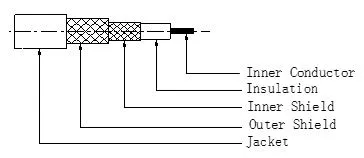

Structure
Inner Conductor: Silver Plated Copper
Insulation: LD-PTFE
Inner Shield: Silver Plated Copper Strip
Interlayer: LD-PTFE
Outer Shield: Silver Plated Copper Wire
Jacket: FEP
Features: DC to 18GHz, three-layer shielding structure, good Amplitude stability, stable performance, reliable and durable
Typical applications: RF transmission in signal transmission, laboratory testing, production line testing, etc.
Structure
Inner Conductor: Silver Plated Copper
Insulation: LD-PTFE
Inner Shield: Silver Plated Copper Strip
Interlayer: LD-PTFE
Outer Shield: Silver Plated Copper Wire
Jacket: FEP
| Mechanical Characteristics | |||||
| Dimension | mm | inch | |||
| Inner Conductor | 1.44 | 0.057 | |||
| Insulation | 3.80 | 0.150 | |||
| Inner Shield | 4.00 | 0.157 | |||
| Interlayer | 4.30 | 0.169 | |||
| Outer Shield | 4.65 | 0.183 | |||
| Jacket | 5.00 | 0.197 | |||
| Weight | 0.085kg/m | ||||
| Min Bending Radius | ( Dynamic 50.0mm),(Static 25.0mm) | ||||
| Insertion/Withdrawal | >5000 | ||||
| Operating Temperature | -55ºC~+125ºC | ||||
| Electrical Characteristics | |||||
| VSWR Max | 3GHz | 6GHz | 18GHz | ||
| SMA | 1.10:1 | 1.15:1 | 1.25:1 | ||
| N | 1.10:1 | 1.15:1 | 1.25:1 | ||
| TNC | 1.10:1 | 1.15:1 | 1.30:1 | ||
| Impedance | 50 ohms | ||||
| Velocity of Propagation | 83% | ||||
| Screening Effectiveness | >90 dB | ||||
| Amplitude Change VS Bending | ≤±0.03dB@18GHz | ||||
| Phase Change VS Bending | ≤±2.4°@18GHz | ||||
| Attenuation (25ºC) | |||||
| Frequency(MHz) | dB/100ft | dB/100m | |||
| 1000 | 9.27 | 30.4 | |||
| 3000 | 16.40 | 53.8 | |||
| 6000 | 23.65 | 77.6 | |||
| 10000 | 31.15 | 102.2 | |||
| 12000 | 34.69 | 133.9 | |||
| 18000 | 43.07 | 141.3 | |||
| 26500 | 53.52 | 175.6 | |||
| Power handling(25ºC,Sea Level,Cable) | |||||
| Frequency(MHz) | Watts | ||||
| 1000 | 821 | ||||
| 3000 | 464 | ||||
| 6000 | 321 | ||||
| 10000 | 244 | ||||
| 12000 | 221 | ||||
| 18000 | 177 | ||||
| 26500 | 142 | ||||
