China CPR Eca Approved CATV Cable Rg59 Coaxial Cable

Product Description

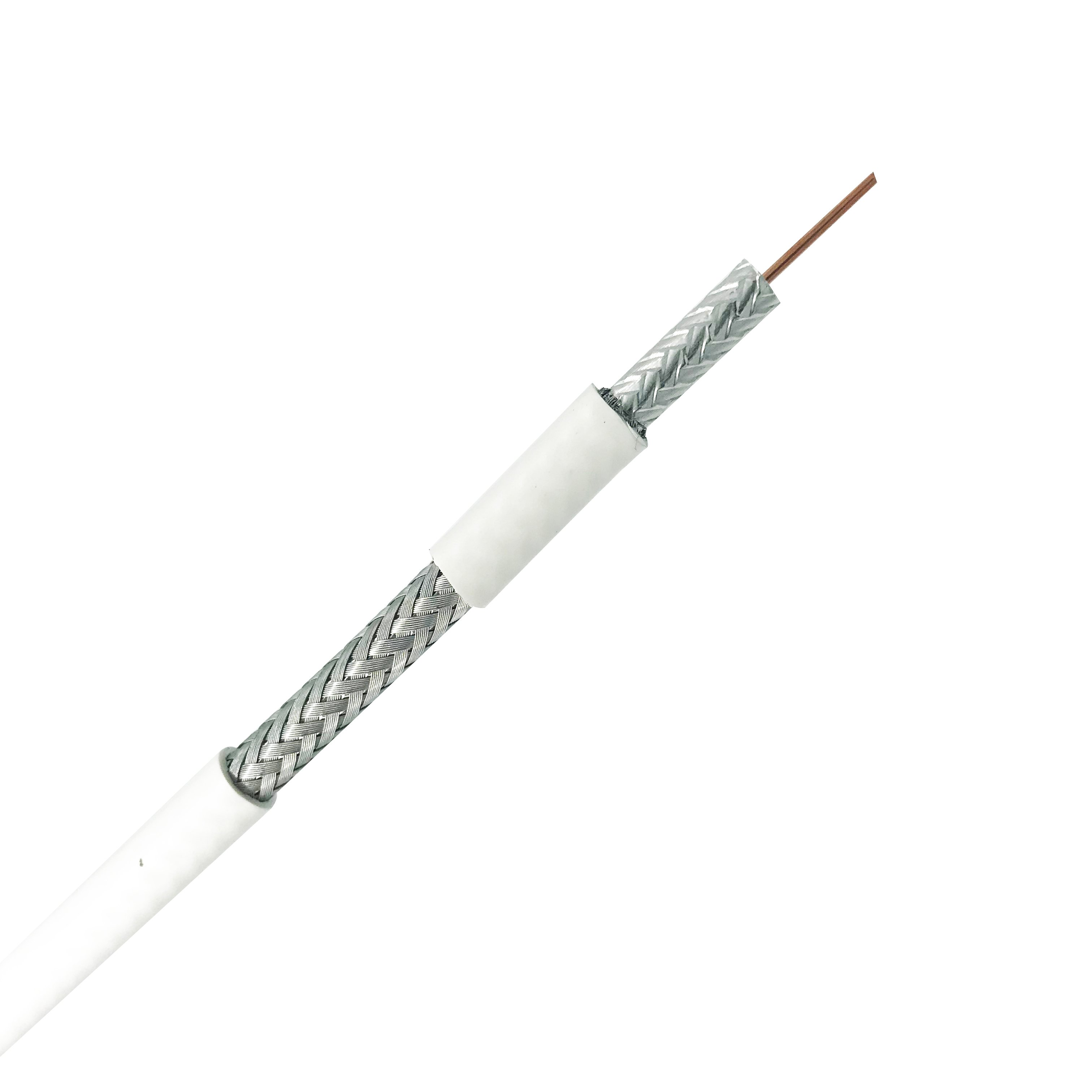

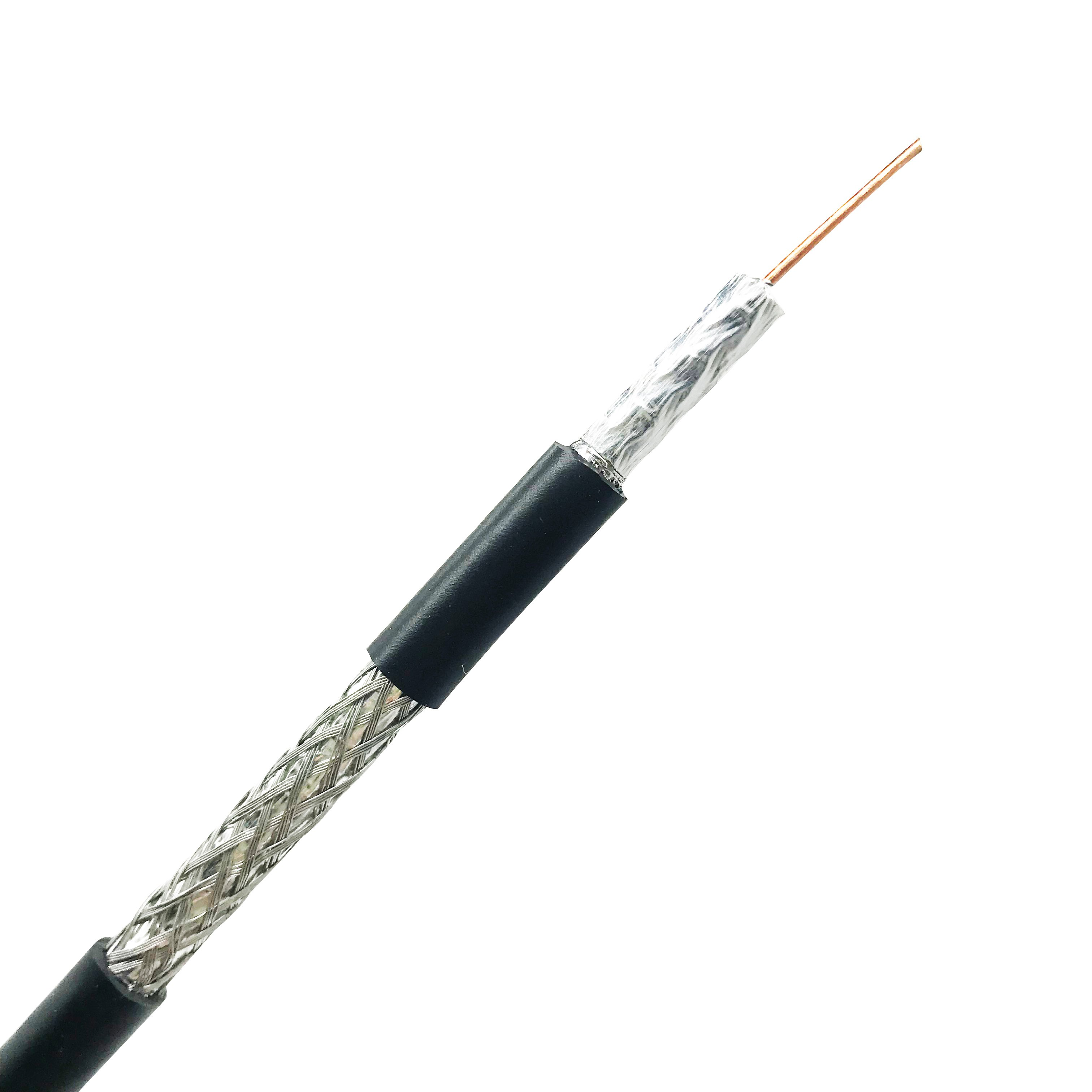

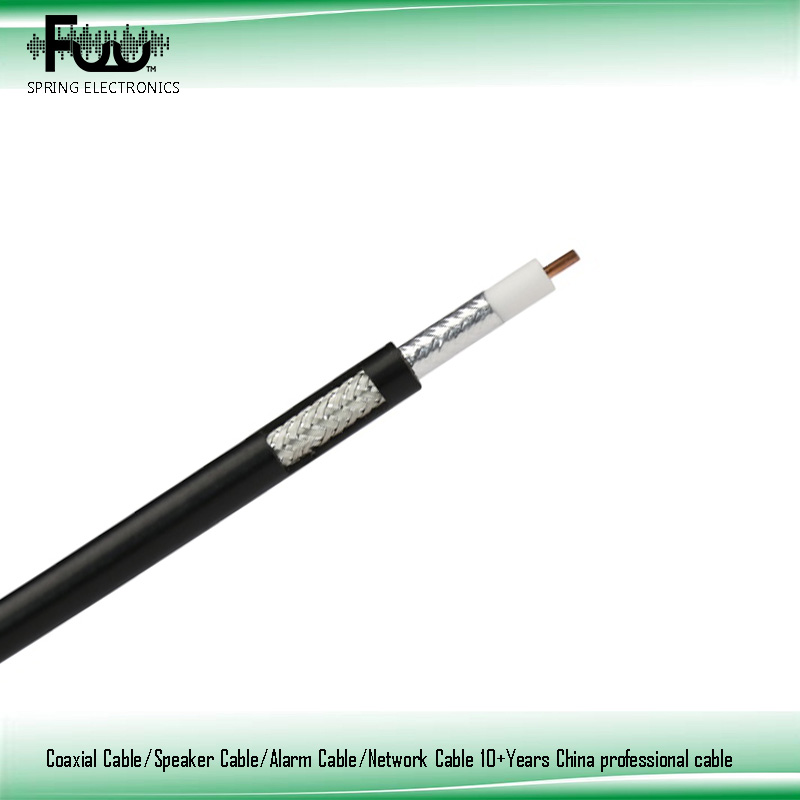

CPR Eca Approved CATV Cable RG59 Coaxial Cable

For Use in Longer CATV Run Lengths

Specification & Constructure

Costruction	Diameter	Material
Center conductor	0.81mm	CCS
Dielectric	3.66mm	Foam PE
1st Shield	18mm width	Al foil. bonded
1st Braiding	64*0.16mm 60% coverage	AL
2nd Shield	Optional
2nd Braiding	Optional
Jelly	Optional
Jacket	6.0mm	PVC
Messenger	Optional

Electrical Characteristics

Electrical Characteristics:
Inner Cond. Resistance	The Max. at 20ºC shall be < 87 Ω/km 26.5 Ω/1000ft
Capacitance	52 ±3 pF/m 15.8 ±1 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4
Attenuation(20ºC):
Frequency (MHZ)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Mechanical and Environmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ºC to 60ºC
Cable diamensions	0.242''±0.006''/ 6.15±0.15 mm PVC
Order Informations:
Marking	RG59 40% Bonded PVC CATV COAXIAL CABLE ×××MT
Package	500FT/Pull Box, 1000FT/Wooden Spool/Pallet
Delivery time	Normally 25 days after received the deposit.

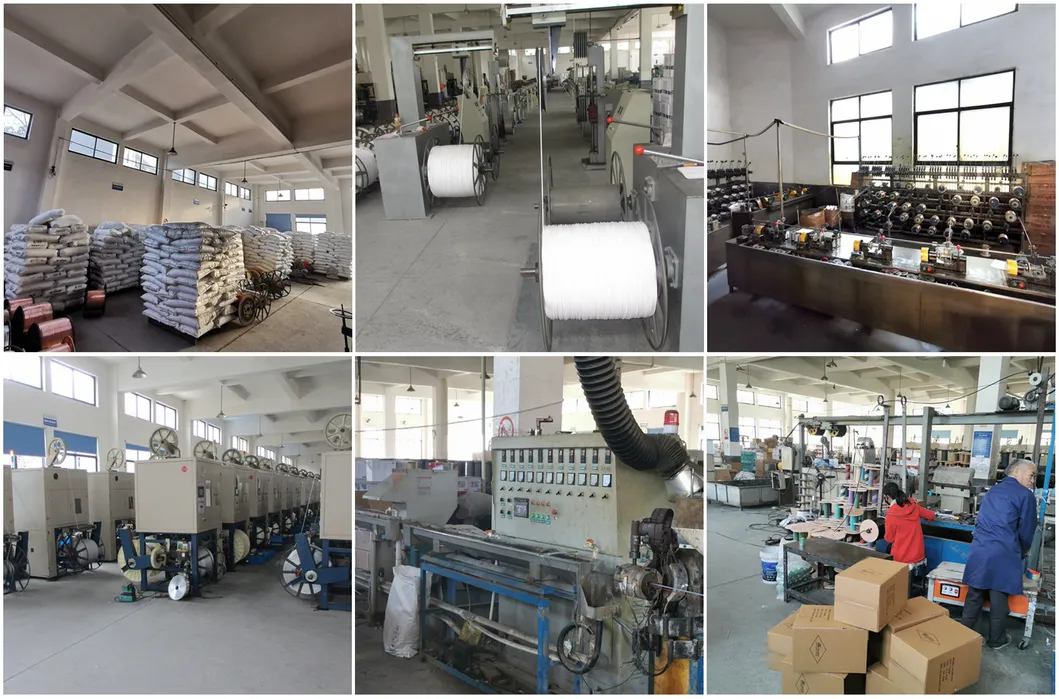

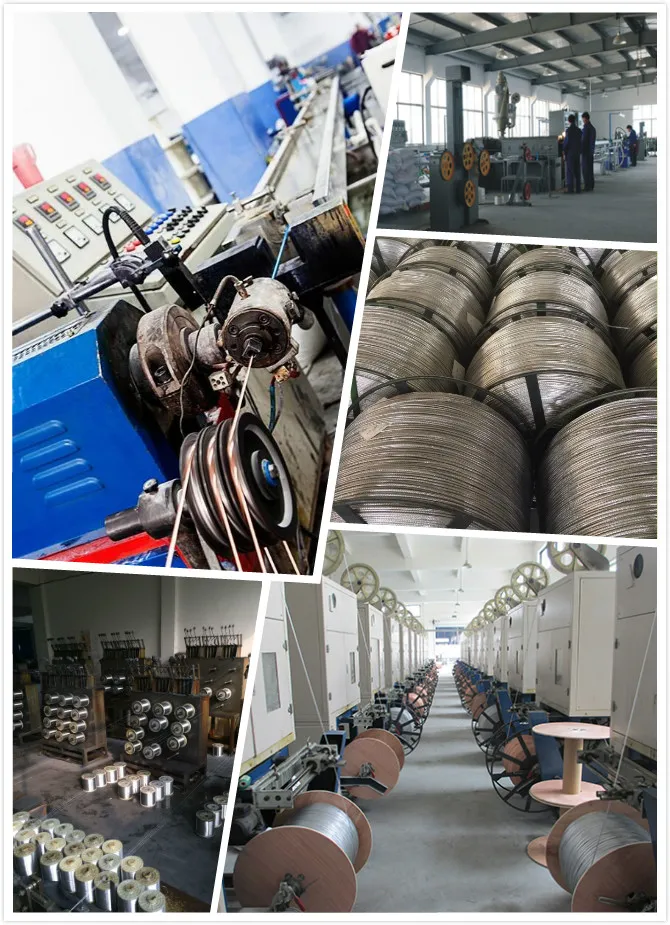

Factory photos and production process

CPR Eca Approved CATV Cable Rg59 Coaxial Cable

Our Service:

   1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:

Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

CPR Eca Approved CATV Cable Rg59 Coaxial Cable
