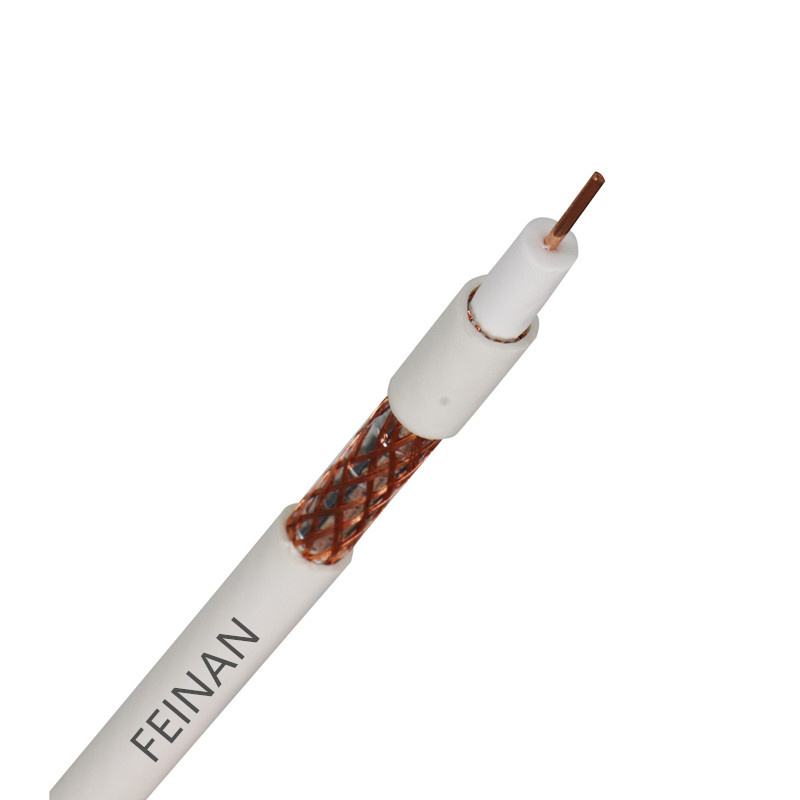

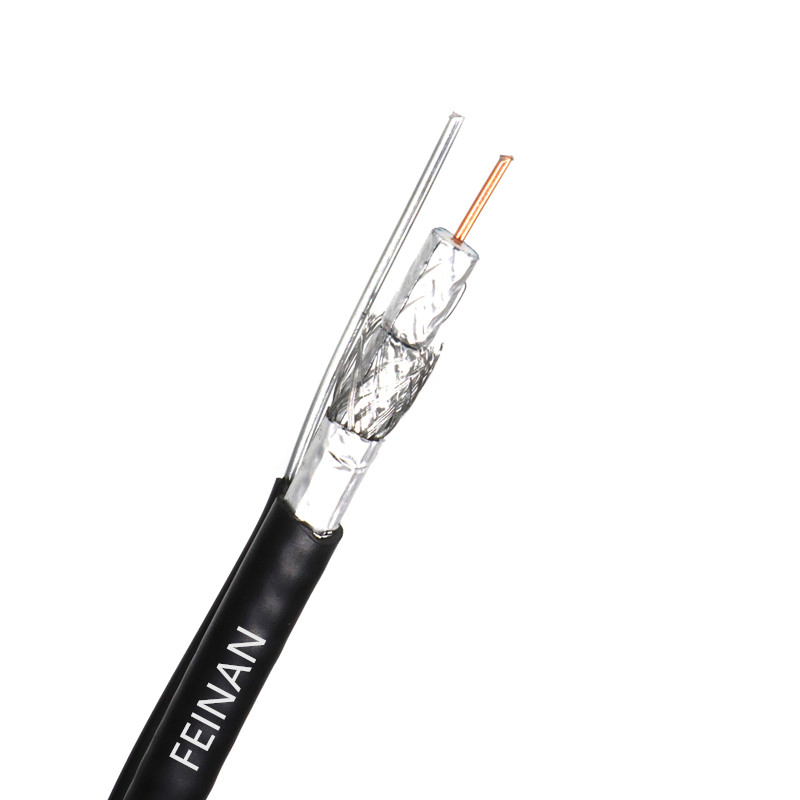

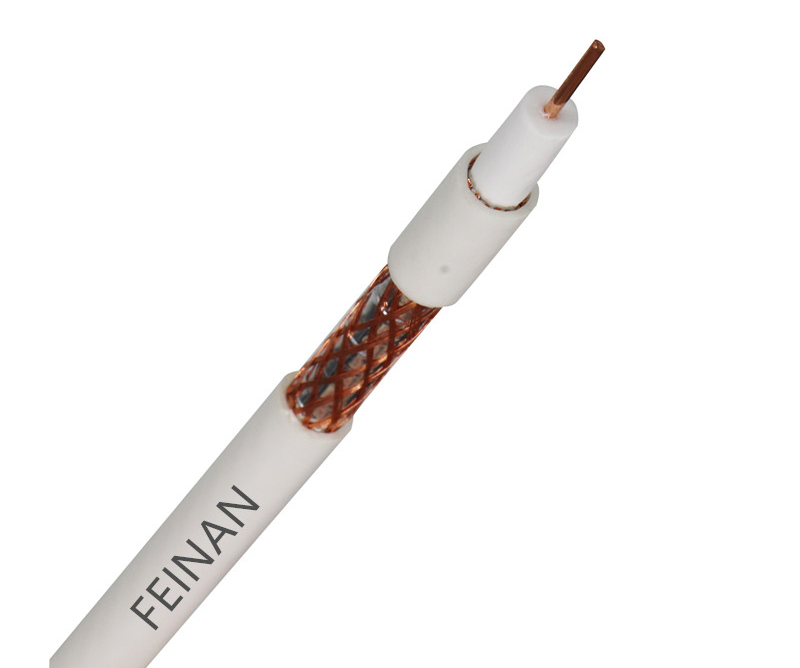

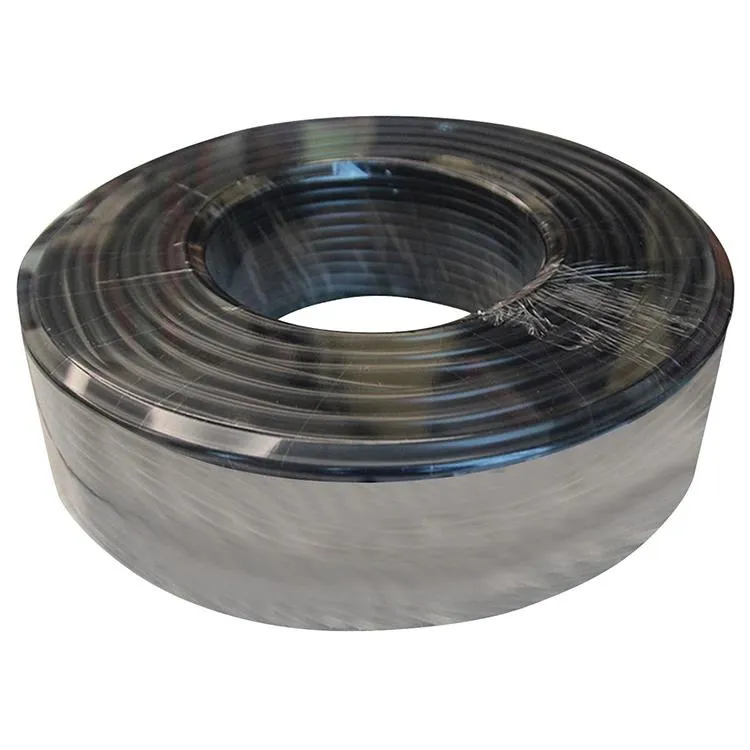

Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems
Product DescriptionNameMaterialParameterInner conductorBare copper, tinned copper or copper clad steel0.81 mm (diameter)DielectricPhysical foam PE3.66 mm (diameter) First shieldBonded aluminum foil 3.84 mm (diameter)Second shieldAluminum braid67% or 95% coverageJacket PVC or PE6.10 mm (diameter) Mes......
Send Inquiry
Product Description

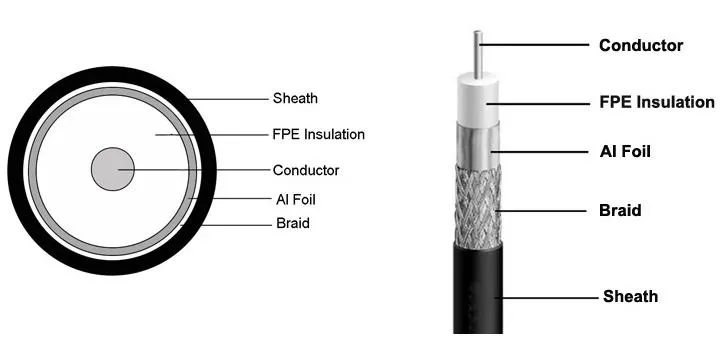

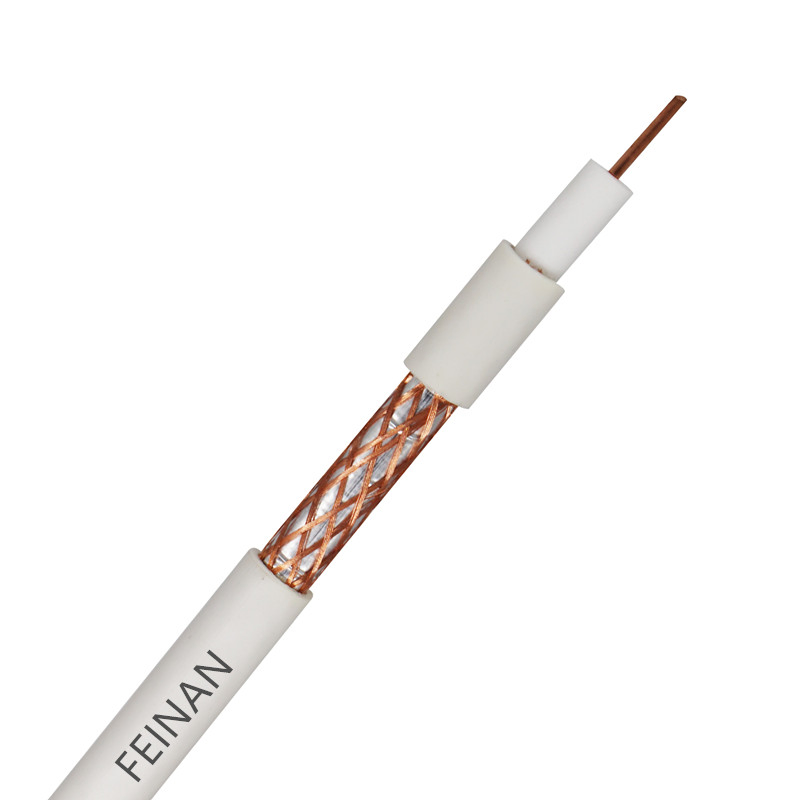

| Name | Material | Parameter |
| Inner conductor | Bare copper, tinned copper or copper clad steel | 0.81 mm (diameter) |
| Dielectric | Physical foam PE | 3.66 mm (diameter) |
| First shield | Bonded aluminum foil | 3.84 mm (diameter) |
| Second shield | Aluminum braid | 67% or 95% coverage |
| Jacket | PVC or PE | 6.10 mm (diameter) |
| Messenger | N/A | N/A |
[Electrical Characteristics]
| Characteristic Impedance | 75 Ohms |
| Velocity of Propagation | 85% |
| Capacitance | 52 PF/m |
| Return Loss | ≥22 dB |
| Operation Temp | -20~+80ºC |
[Attenuation at 20ºC]
| Frequency (MHz) | 5 | 55 | 300 | 500 | 750 | 1000 |
| Maximum(dB/100m) | 2.82 | 6.73 | 14.60 | 18.70 | 22.87 | 26.64 |
Coaxial Cable packing :
1). Coil With Carton 100M/Coil, 6 Coil/Carton 200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not 100M/Paper Reel 100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic. 305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet 500ft Reel In Box. 1000ft/Reel In Box. Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not 100M/Paper Reel 100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic. 305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet 500ft Reel In Box. 1000ft/Reel In Box. Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.

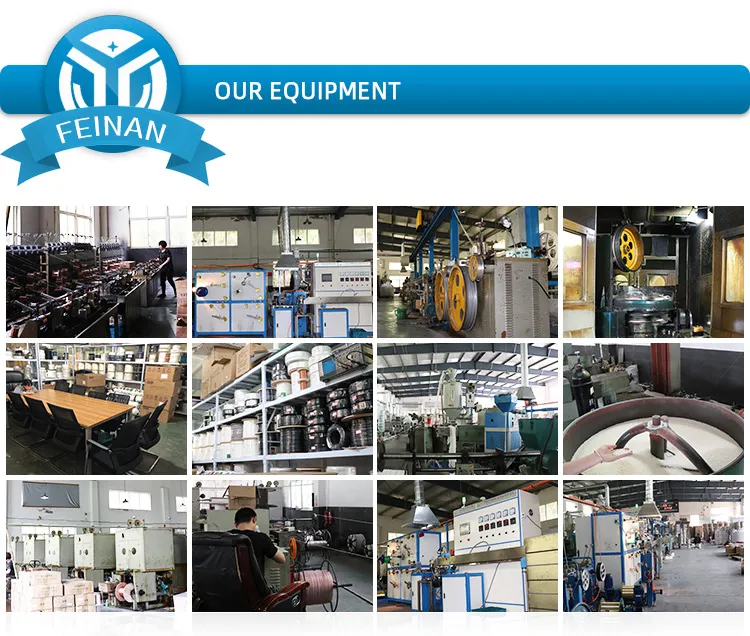

1.)We are a professional cable manufacturer, can offer you all the best cable solutions.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.
4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
6.)We offer free box design service.
