Coaxial Cables, for FM Transmitter, Hsf-141c-50-FEP, Blue Color, 50ohm, FEP
HSF-141C-50-FEP Semi-Flexible coaxial cable,0.141 inch diameter 50 ohm coaxial cable with silver-plated copper center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket.Product DescriptionInner Conductor: 0.91mm Silver Plated Copper Clad SteelDielectric: 2.98mm PT......
Send Inquiry
Product Description
Semi-Flexible coaxial cable,0.141 inch diameter 50 ohm coaxial cable with silver-plated copper center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket.

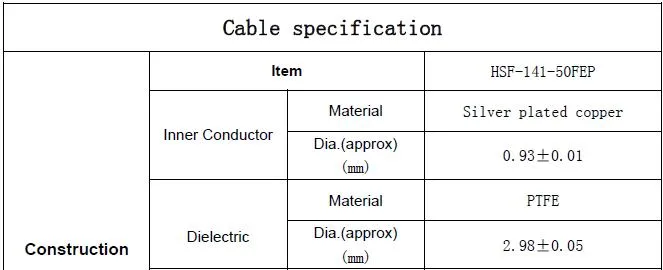

Inner Conductor: 0.91mm Silver Plated Copper Clad Steel
Dielectric: 2.98mm PTFE
Jacket: 4.10mm Blue FEP

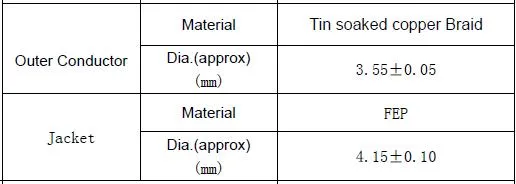

Outer Conductor: 3.58mm Tin Dipped Copper Braid

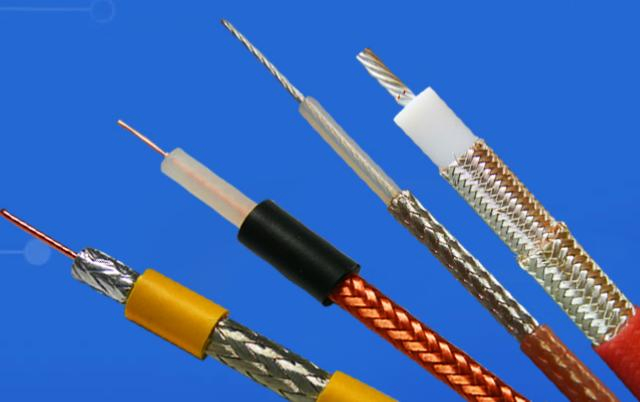

We offer MIL-C-17 Coaxial Cables, Miniature Coaxial Cables, TV Coaxial Cables, Semi-flexible, Semi-rigid Coaxial Cables and RF Coaxial Cables,etc.
Application: Semi Flexible Coaxial Cable is used for internal connection in black box, base station of mobile, delay line, microwave, radio-frequency equipment and all other electronic equipment.
0.047 inch Semi-Flexible Coaxial Cable is the same size as standard semi-rigid cable, but more flexible.
Features:·Good flexibility,Hand forming without tooling,Available in long lengths,Standard connectors for semi-rigid cable can be utilized.
0.0865 inch Semi-Flexible Coaxial Cable is the same size as standard semi-rigid cable, but more flexible.
Features:·Good flexibility,Hand forming without tooling, Available in long lengths, Standard connectors for semi-rigid cable can be utilized.
0.141 inch Semi-Flexible Coaxial Cable is the same size as standard semi-rigid cable, but more flexible.
Features:·Good flexibility, Hand forming without tooling, Available in long lengths, Standard connectors for semi-rigid cable can be utilized.
Features:·Good flexibility, Hand forming without tooling, Available in long lengths, Standard connectors for semi-rigid cable can be utilized.
