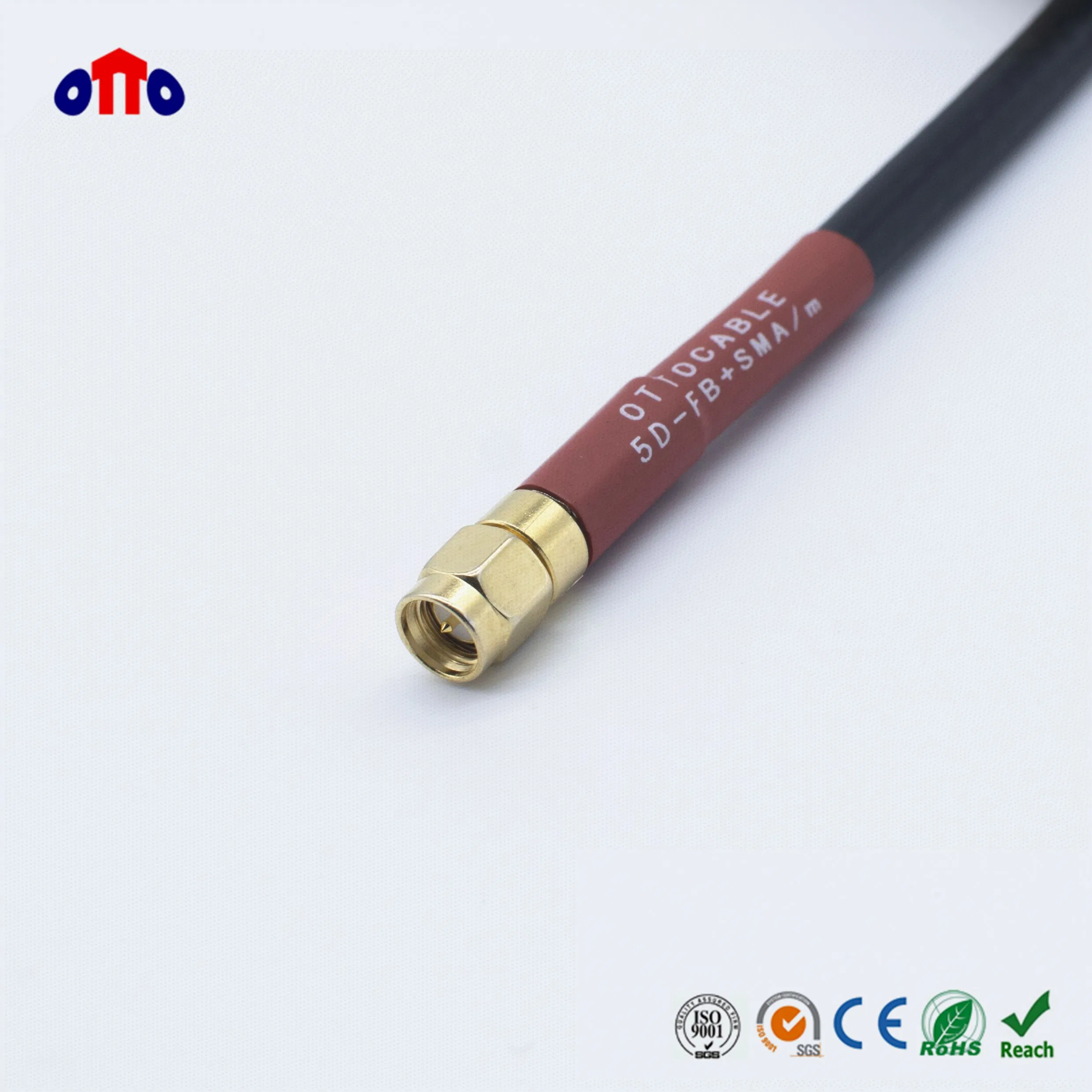

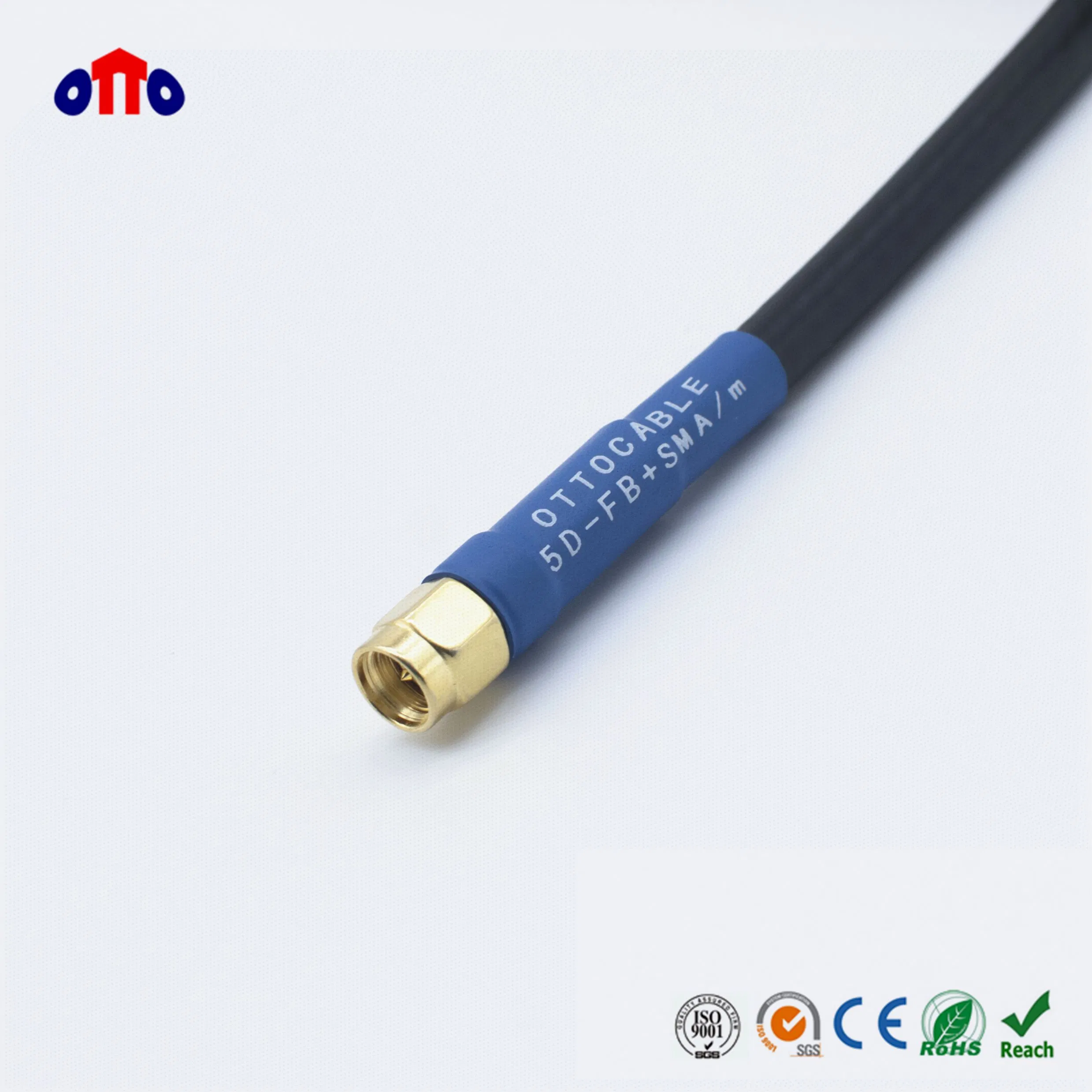

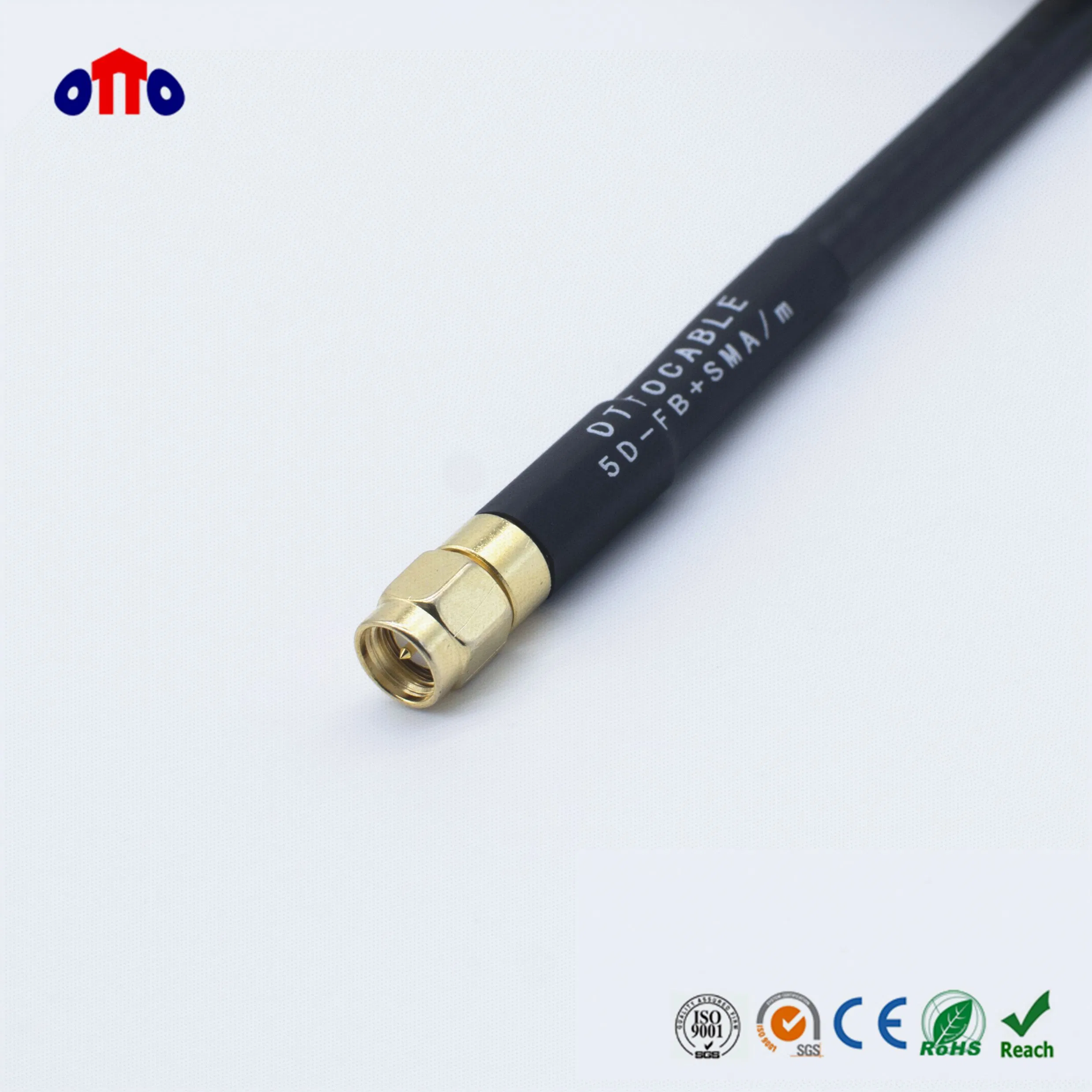

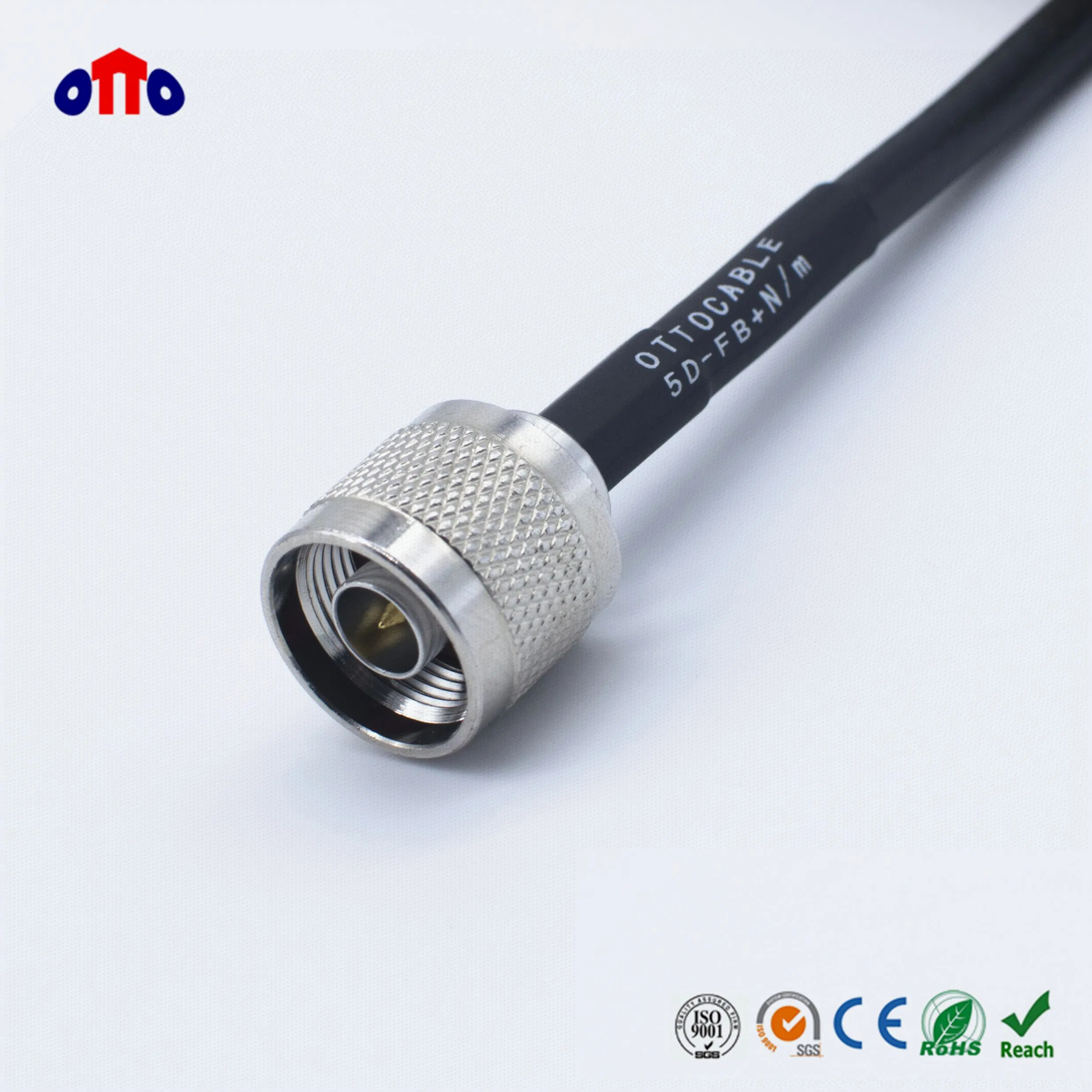

Coax Jumper Cable 5D- FB with SMA -N Connector
Coax Jumper Cable 5D-FB with SMA -N ConnectorApplication: Antennas Base Station Atenna Cellphone Signal Repeaters Signal transmissionFeatures: 50 Ohm Good shielding effectiveness 0 - 6GHz Excellent performance at high frequency Equivalent to LMR300 cable REACH/RoHS compliant, CE certified. OEM/ODMAs......
Send Inquiry
Product Description
Coax Jumper Cable 5D-FB with SMA -N Connector

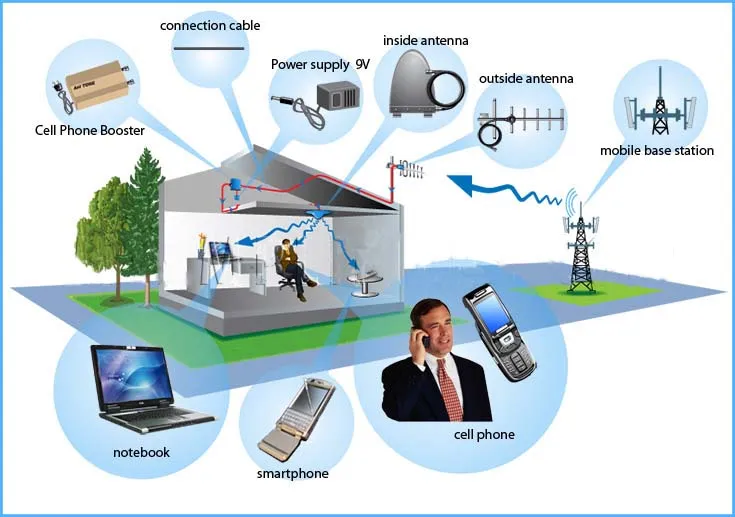

Application:
• Antennas
• Base Station Atenna
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Equivalent to LMR300 cable
• REACH/RoHS compliant, CE certified.
• OEM/ODM

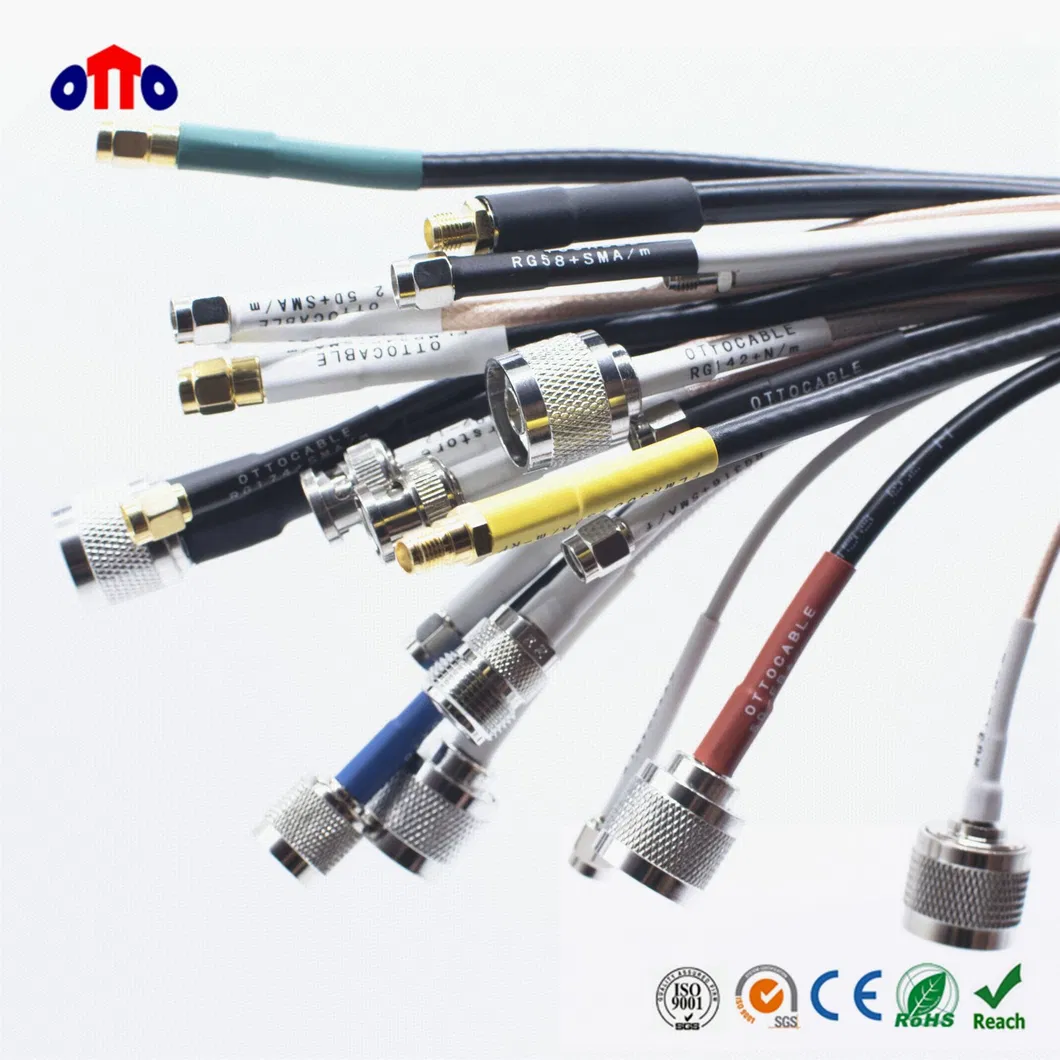

Assemblies:
• N, TNC, BNC, SMA......

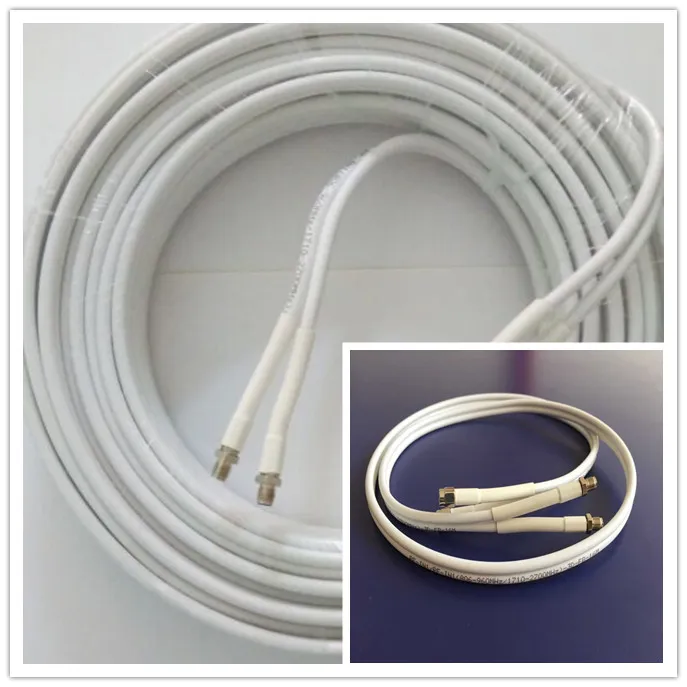

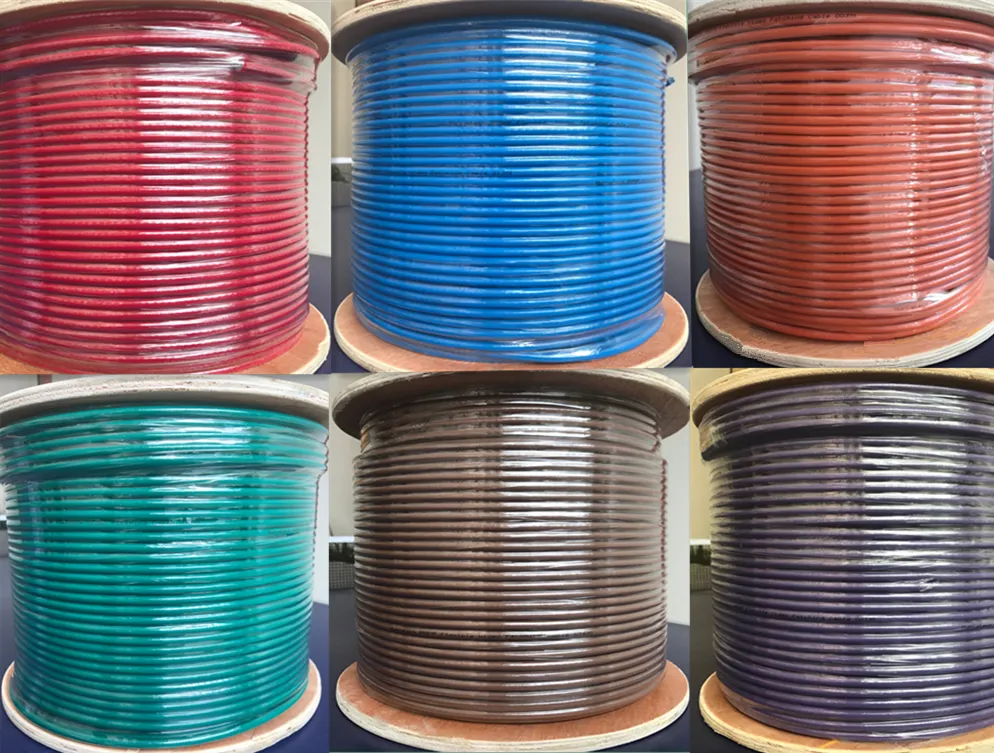

• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
Electrical Characteristics
Attenuation (@20ºC)
Application:
• Antennas
• Base Station Atenna
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Equivalent to LMR300 cable
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper / Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper / Al-Mg Wire Braid PVC/PE/LSZH | 1.80 5.00 5.10 5.60 7.50 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) VSWR Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 82 82.0 ≥20 ≥75 ≤1.2 -25 to +70 -25 to +70 27.0 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 800 1200 1500 1800 2000 2500 3000 | 19.0 24.0 27.2 29.7 32.5 35.8 40.9 |
