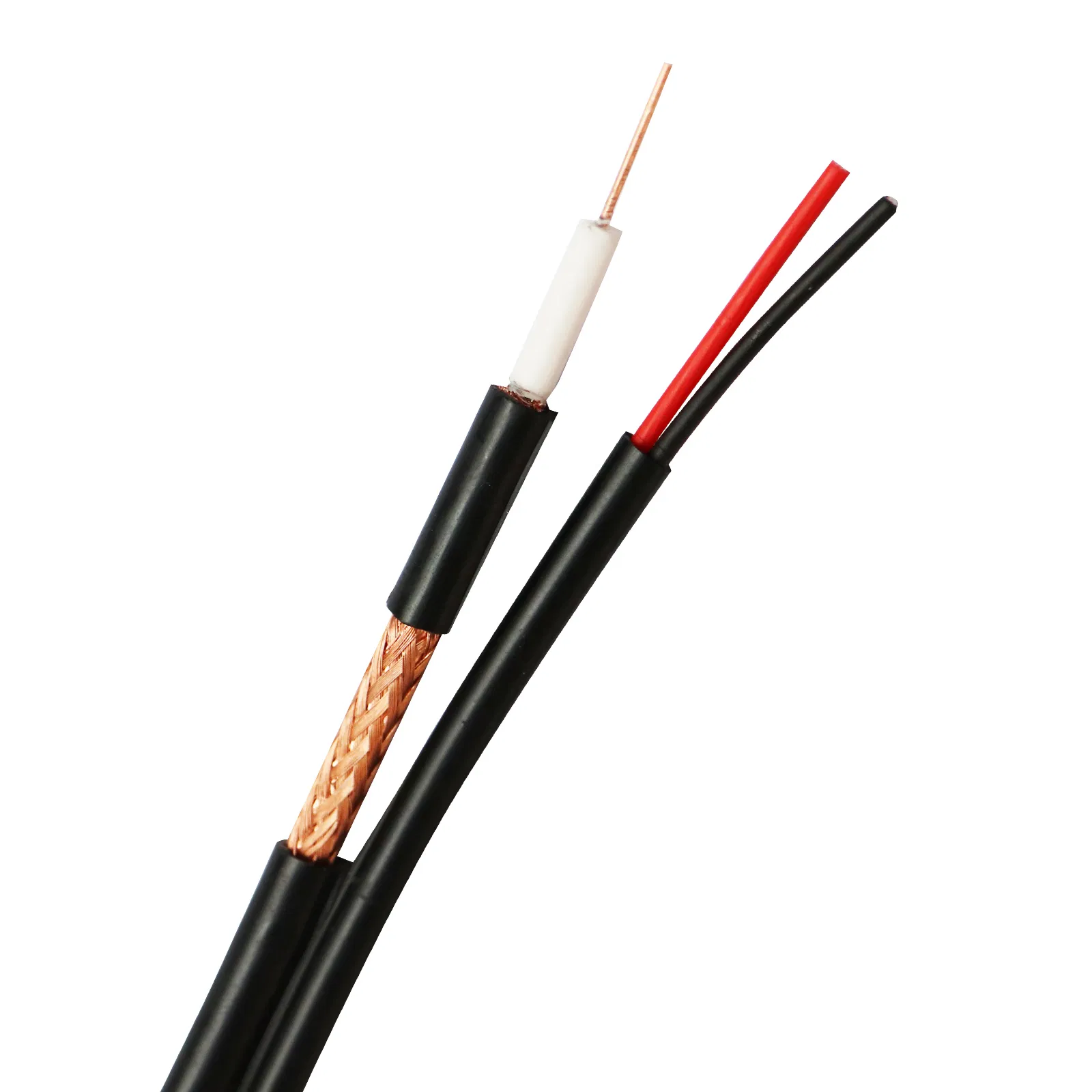

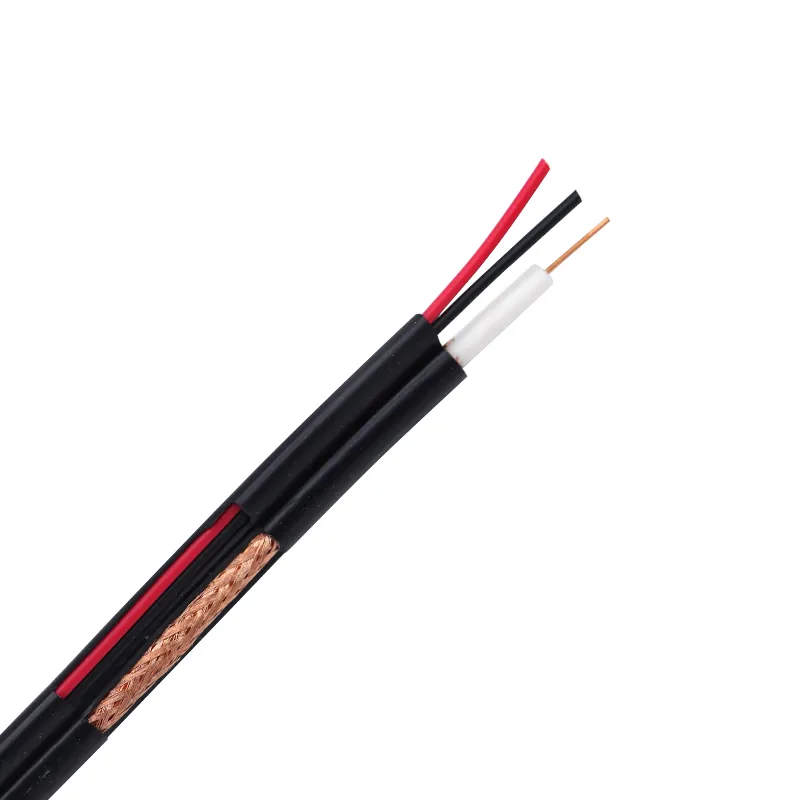

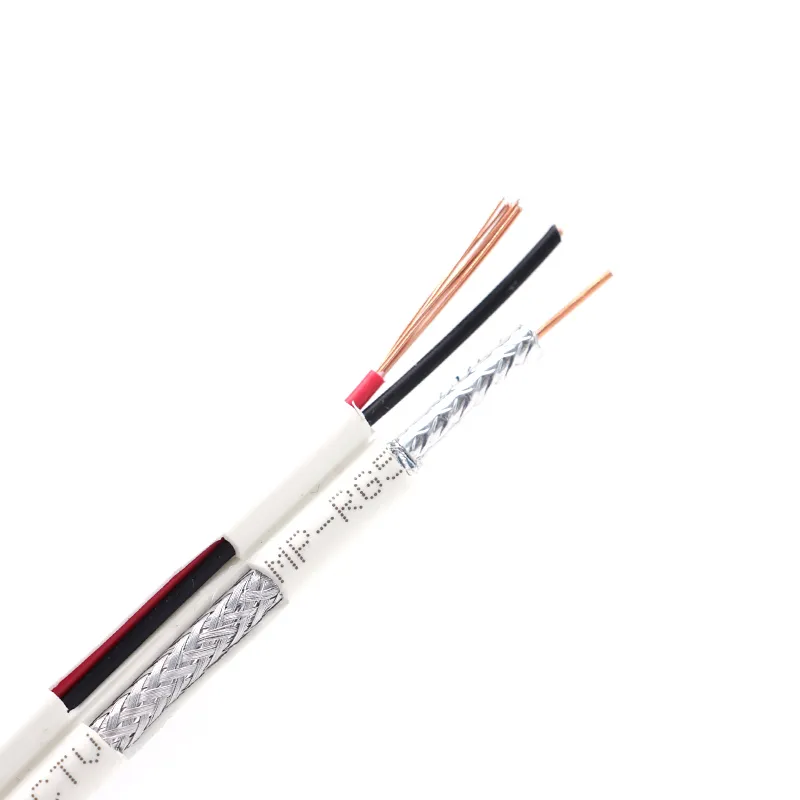

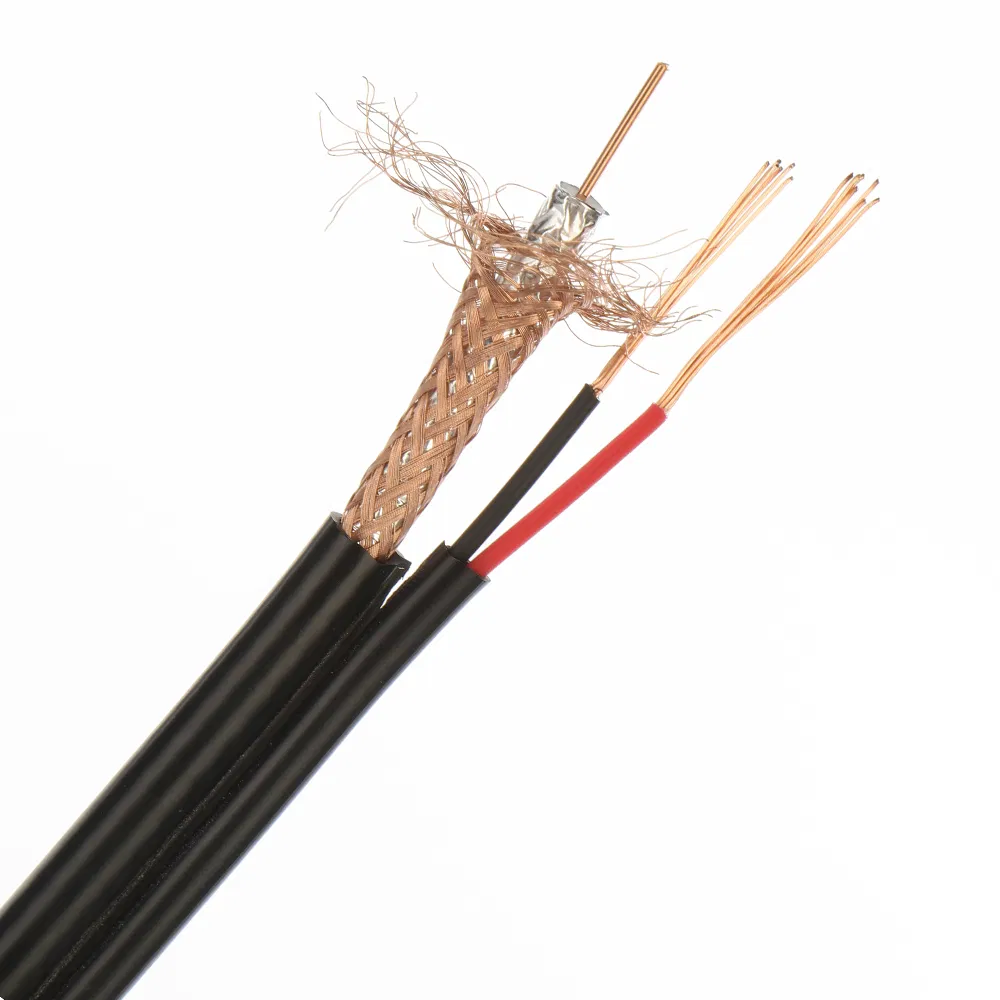

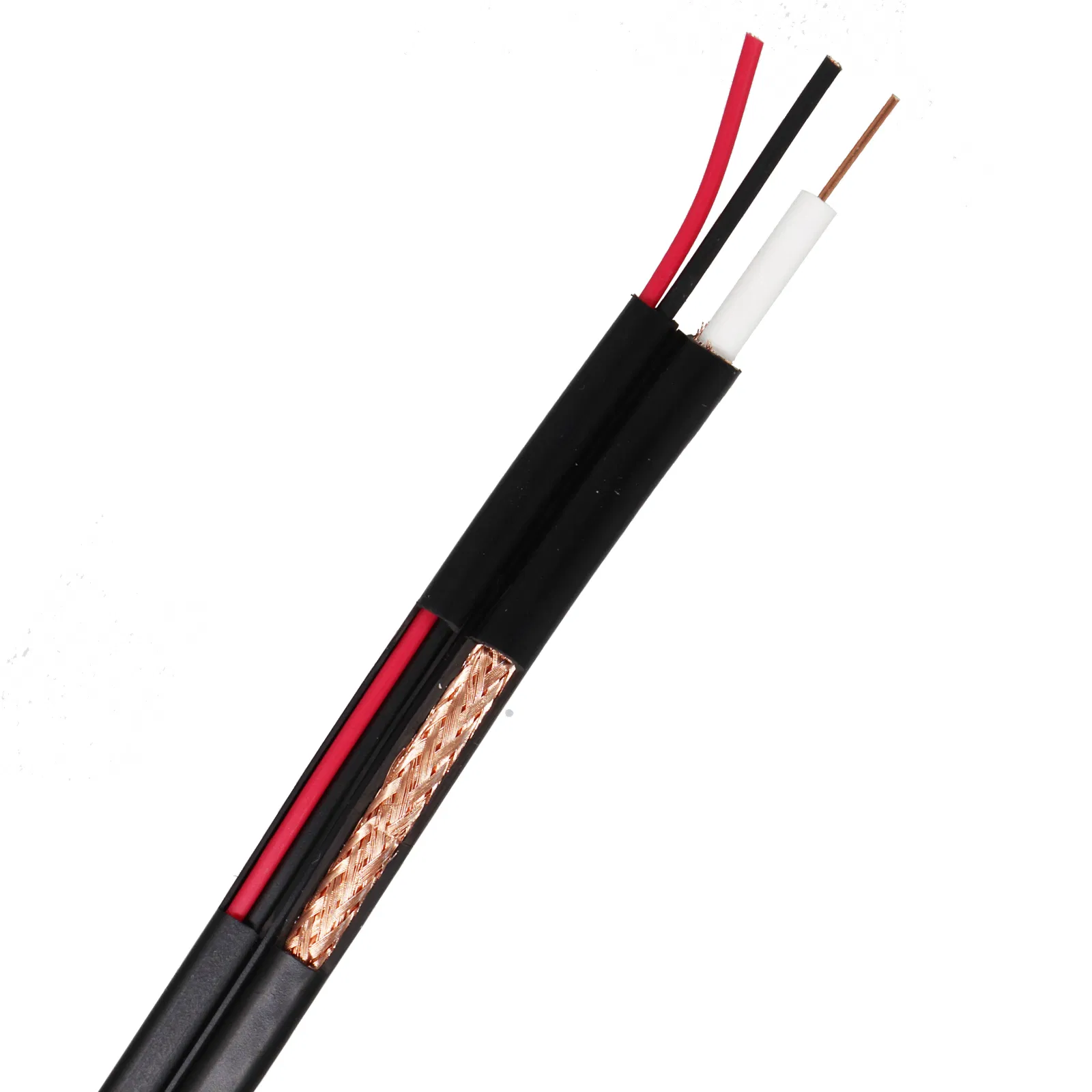

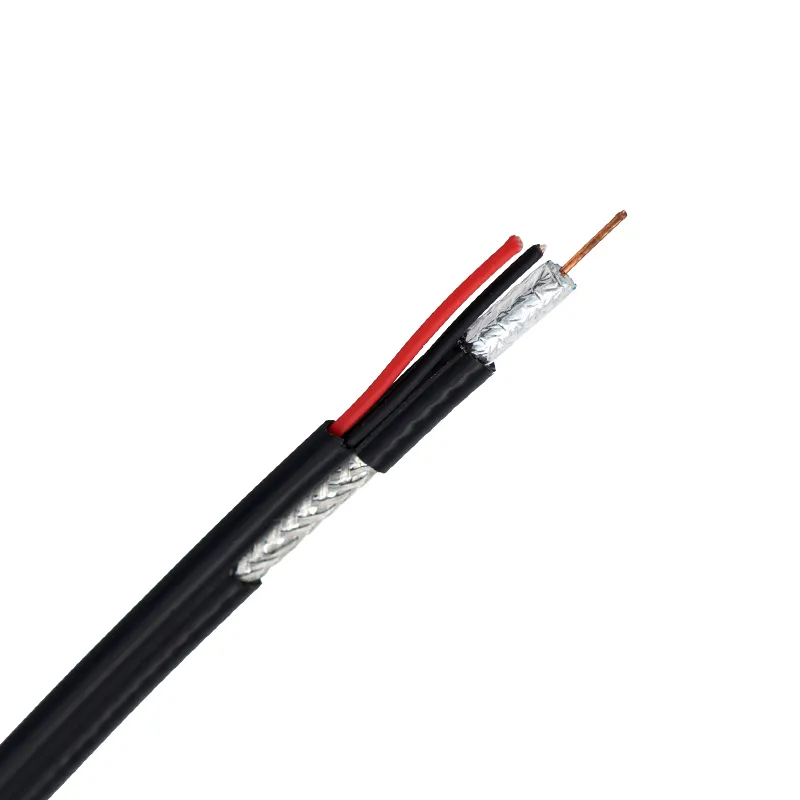

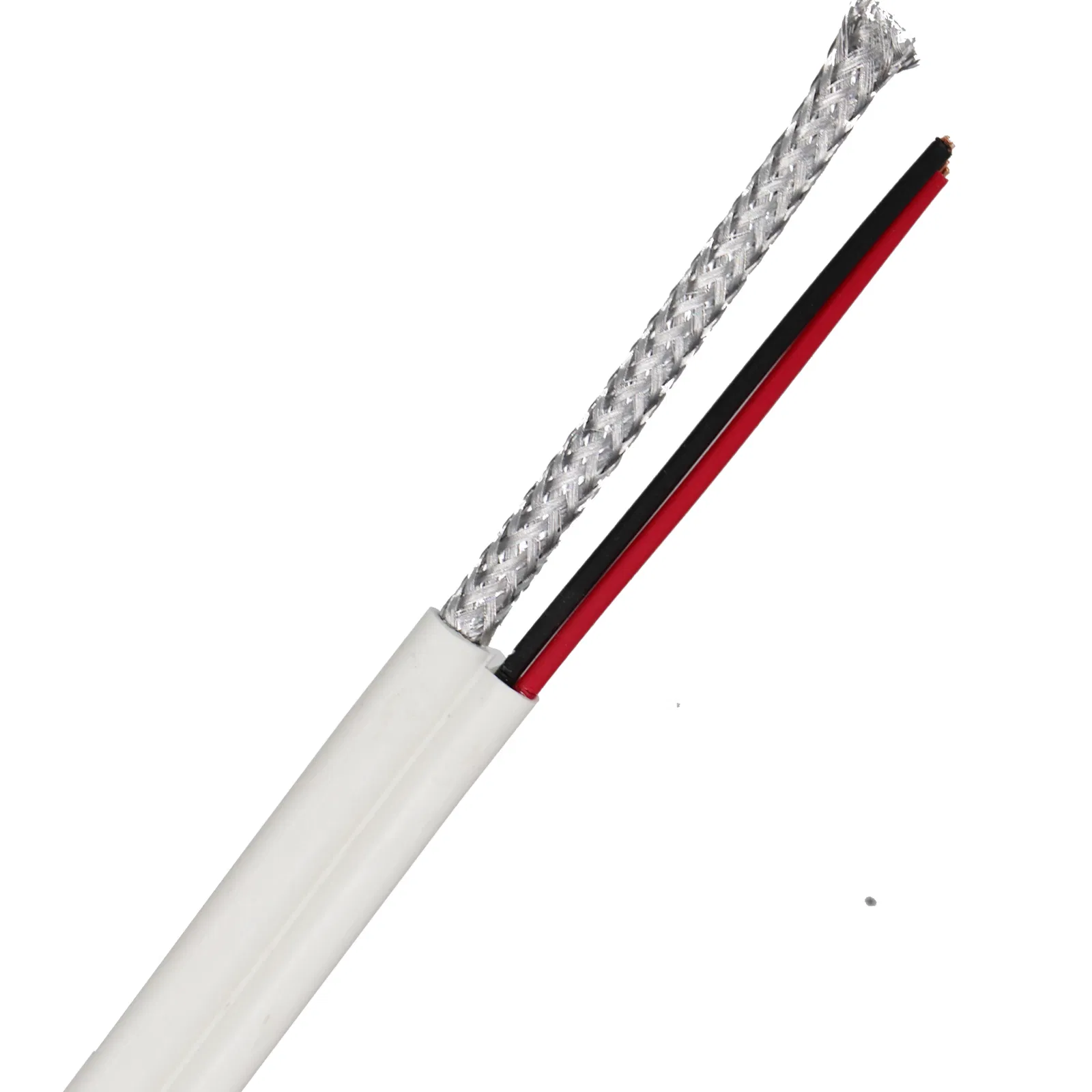

China Factory OEM Wholesale Coaixial CCTV 75ohm Rg59 2c Power Siam Kabel Siamese Camera HD Communication TV Rg59 Shotgun Coaxial Cable with 2 Core Power Wire
Product DescriptionChina Factory OEM Wholesale CCTV 75ohm Rg59 2c Power Cable Siam Kabel Siamese Camera HD Coaxial Rg59 Communication Coaxial Cable with 2 core power wire* Duble shield* 60%-90% BraidRG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance sy......
Send Inquiry
Product Description
* Duble shield
* 60%-90% Braid
RG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes with dual shielding, including a 90% braid, to give you great signal quality by protecting your signal from electromagnetic interference (EMI).
RG 59 cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures that this product will outperform quad shielded RG 59 cable.
* Rated for 75 ohms
* BC or CCS Center Conductor
Best Used For
* CCTV Video Surveillance Systems
Structure | Material | RG59 DUAL | ||
Conductor | BC/CCS | 0.81mm(20AWG,0.032'') | ||
Dielectric | FPE | 3.66mm(0.144'') | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 40%-95% | ||
3rd Shield | Al Foil | - | ||
4th Shield | BC or Al Braiding | - | ||
Jacket PVC/PE | Outer Diameter | 6.1mm(0.24'') | ||
Nominal Thickness | 0.81mm(0.032'') | |||
Power wire | CCS / Copper | 0.50mm, 0.75 mm | ||
We Hangzhou Feinan is a comprehensive manufacturer of communication cables with more than 15 years experience.
We located in a beautiful western suburb of Hangzhou Lin'an city, with pleasant geographical location and convenient
transportation to Shanghai and Ningbo Port.

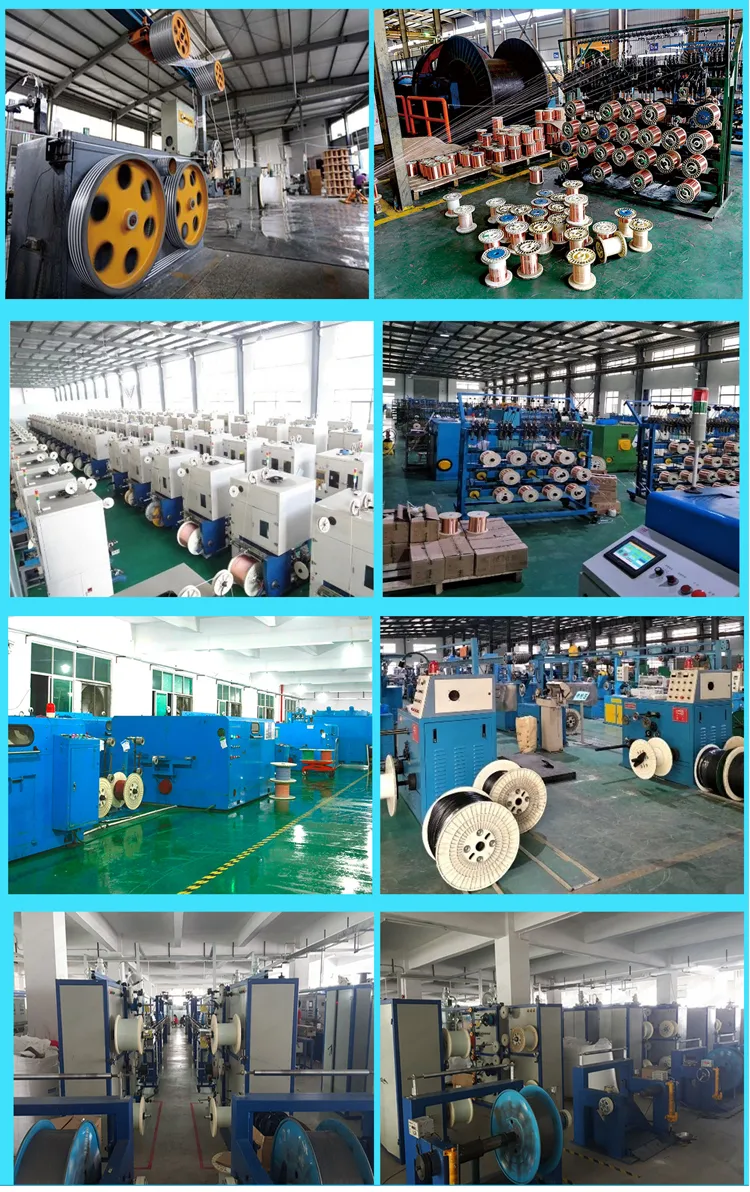

The factory could professionally manufacture and supply coaxial cables, lan cables and fiber optic cables.Our principal
products include coaxial cable (RG59 with power , RG6, KX 7 ), fiber optic cable(drop cable, ADSS, G Y X T W, GYTS,
G Y X F T Y),Lan cable (CAT 5e , CAT 6, CAT 7).
In feinan , quality always comes to the first concern. The company is running under I S O 9 0 0 1 quality management

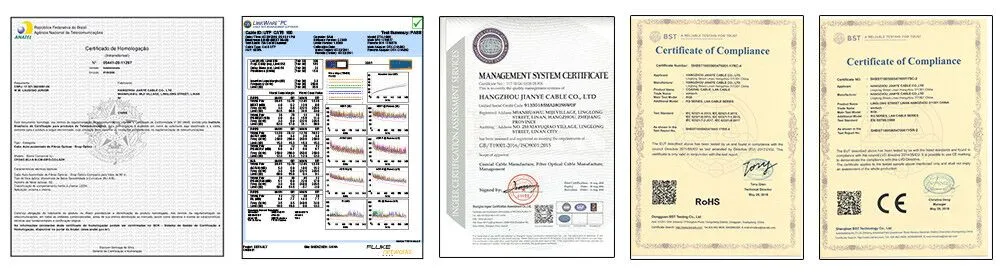

system, and our products have been approved by RoHS, C E , C P R and ANATEL certifications. Besides ,we could
offer free sample for verity, free box design, OEM production. With advanced testing equipment, our experienced QC
team assures every line of our products is qualified with particular standards for specific markets.
Most of our products are exported to Europe, America,South America and South-east Asia. Etc. What is more, our
company always devotes to developing custom cables according to clients needs. We look forward to working with
you and getting mutual benefit in future.
