Product Description

1. RG59 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 0.81mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.1 PVC jacket white

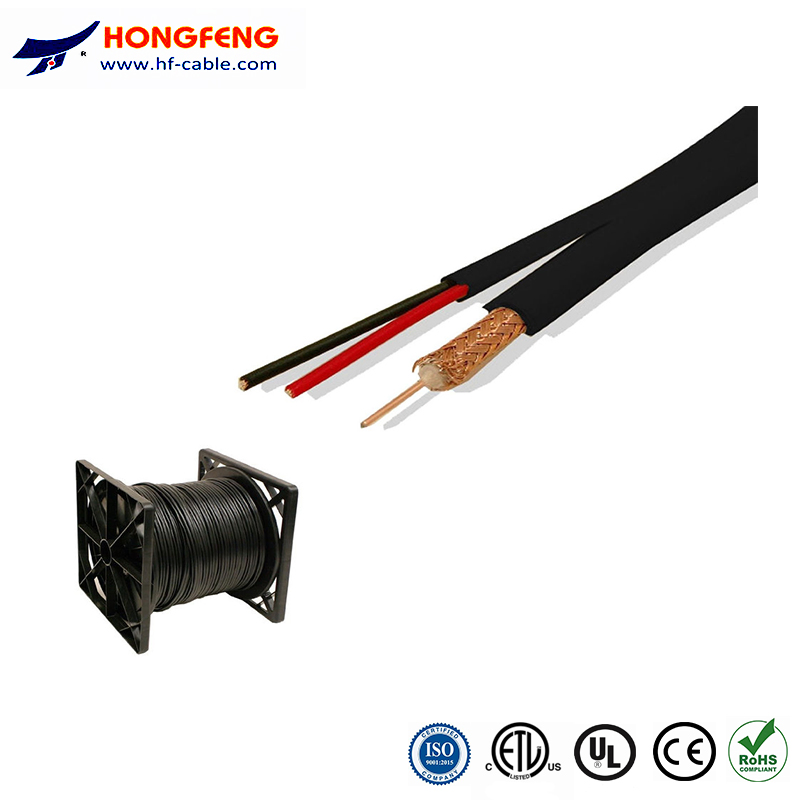

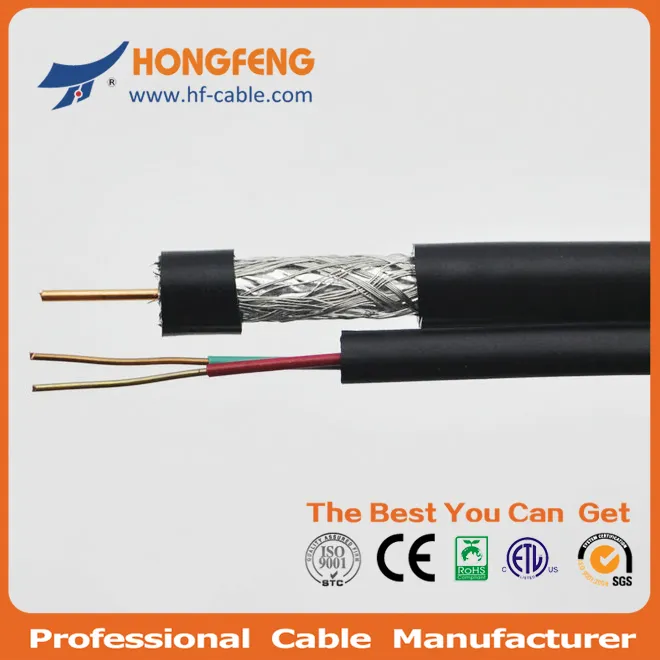

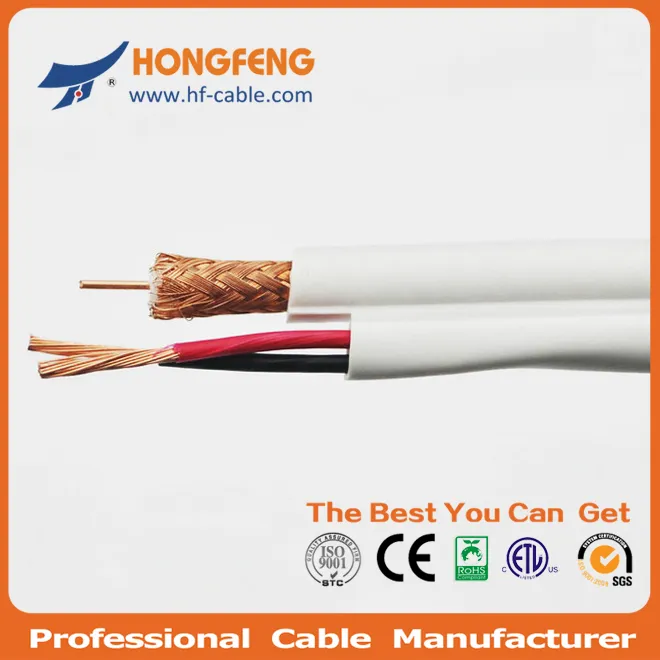

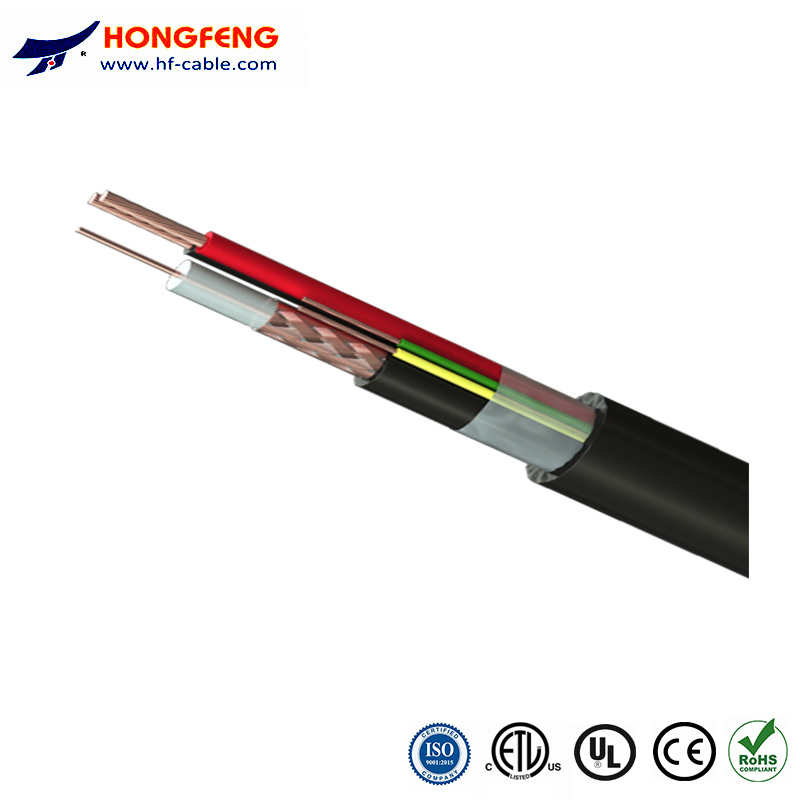

CCTV HD Cvi Camera Cable Rg59

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

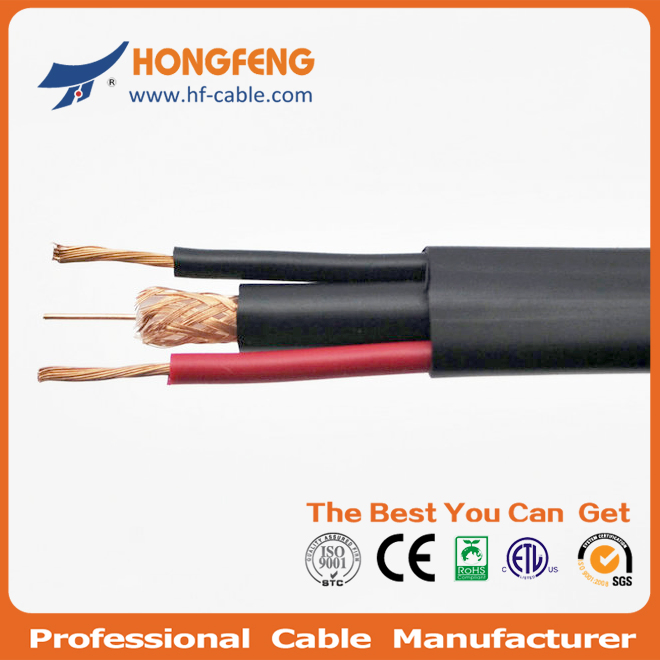

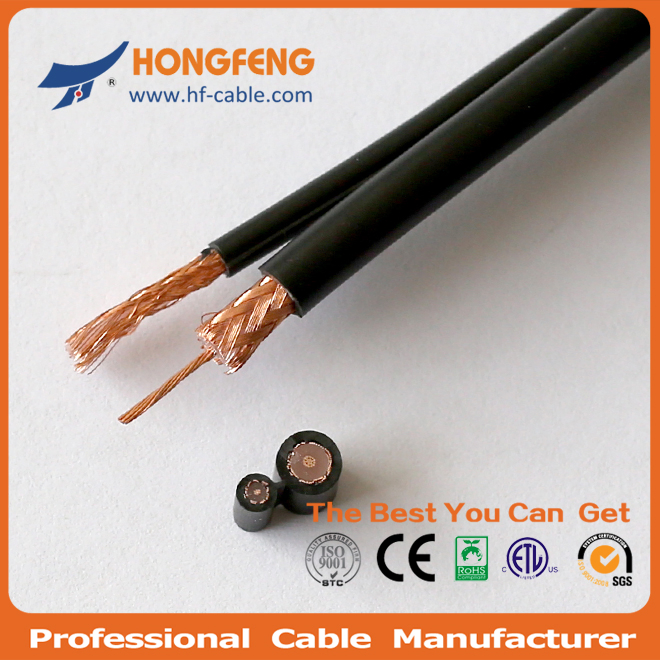

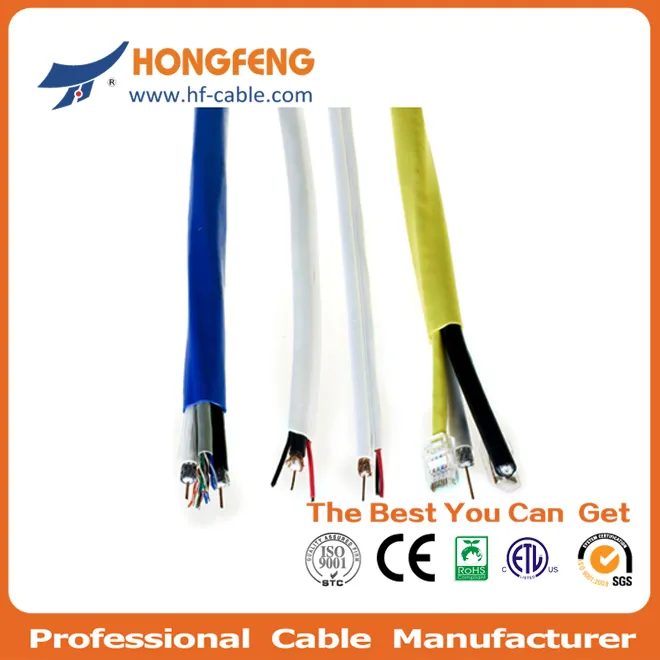

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.

Data	RG59	RG59-Tri	RG59-Quad
Impedance(ohm)	75± 3	75± 3	75± 3
Capacitance(pF/m)	52± 2	52± 2	52± 2
Velocity Ratio	85%	85%	85%
Insulation Resistance(MΩ /km)	5000	5000	5000
Return Loss(dB)
1-1000MHz	≥ 23dB	≥ 23dB	≥ 23dB
1000-3000MHz	≥ 20dB	≥ 20dB	≥ 20dB
Attenuation[@20° C68° F]
Frequency(MHz)	5 50 200 400 800 1000 1350 1750 2150 3000
Nom Value(dB/100m)	1.7 5.2 10.2 14.8 22.5 25 30.5 33.5 37.5 46.5
Screening attenuation
1-1000MHz	≥ 90dB	≥ 100dB	≥ 110dB
