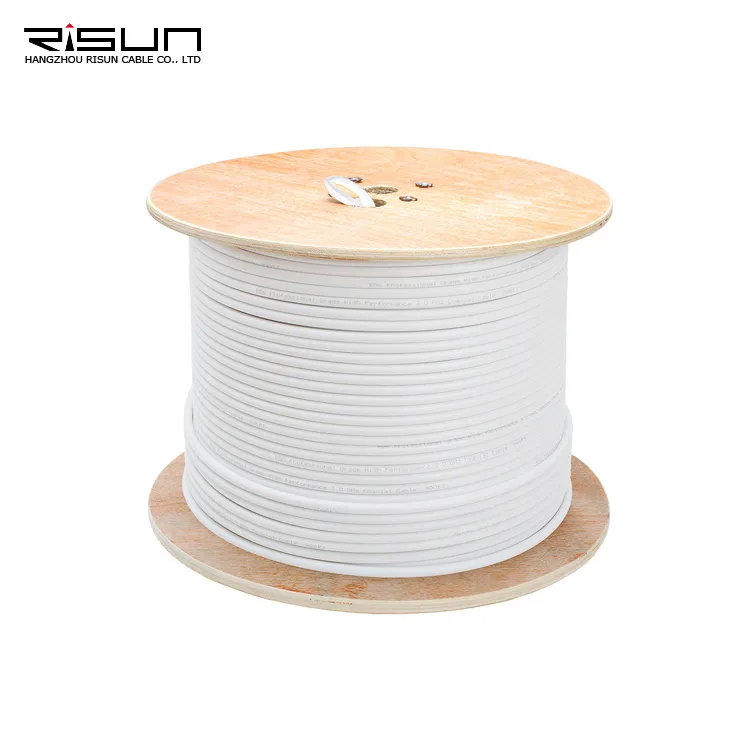

Cat5e Outdoor Direct Burial F/UTP Waterblock Tape Black UV Cmx
We can provide CAT5e,CAT6,CAT6a,CAT7 cable,Security Cable, Network Cable,Speaker/Audio Cable,Telephone Cablefor different use as customize.a)We are an experienced factory.As the LARGEST BUYER of European Market(JinNan area,Lin'an).We are a leader in producing cables with high quality and competi......
Send Inquiry
Product Description
We can provide CAT5e,CAT6,CAT6a,CAT7 cable,Security Cable, Network Cable,Speaker/Audio Cable,Telephone Cablefor different use as customize.
a)We are an experienced factory.As the LARGEST BUYER of European Market(JinNan area,Lin'an).We are a leader in producing cables with high quality and competitive price since 2007
b)All our cables are manufactured in production facilities accredited with full traceability ISO 9001 Management Systems for your assurance of quality product

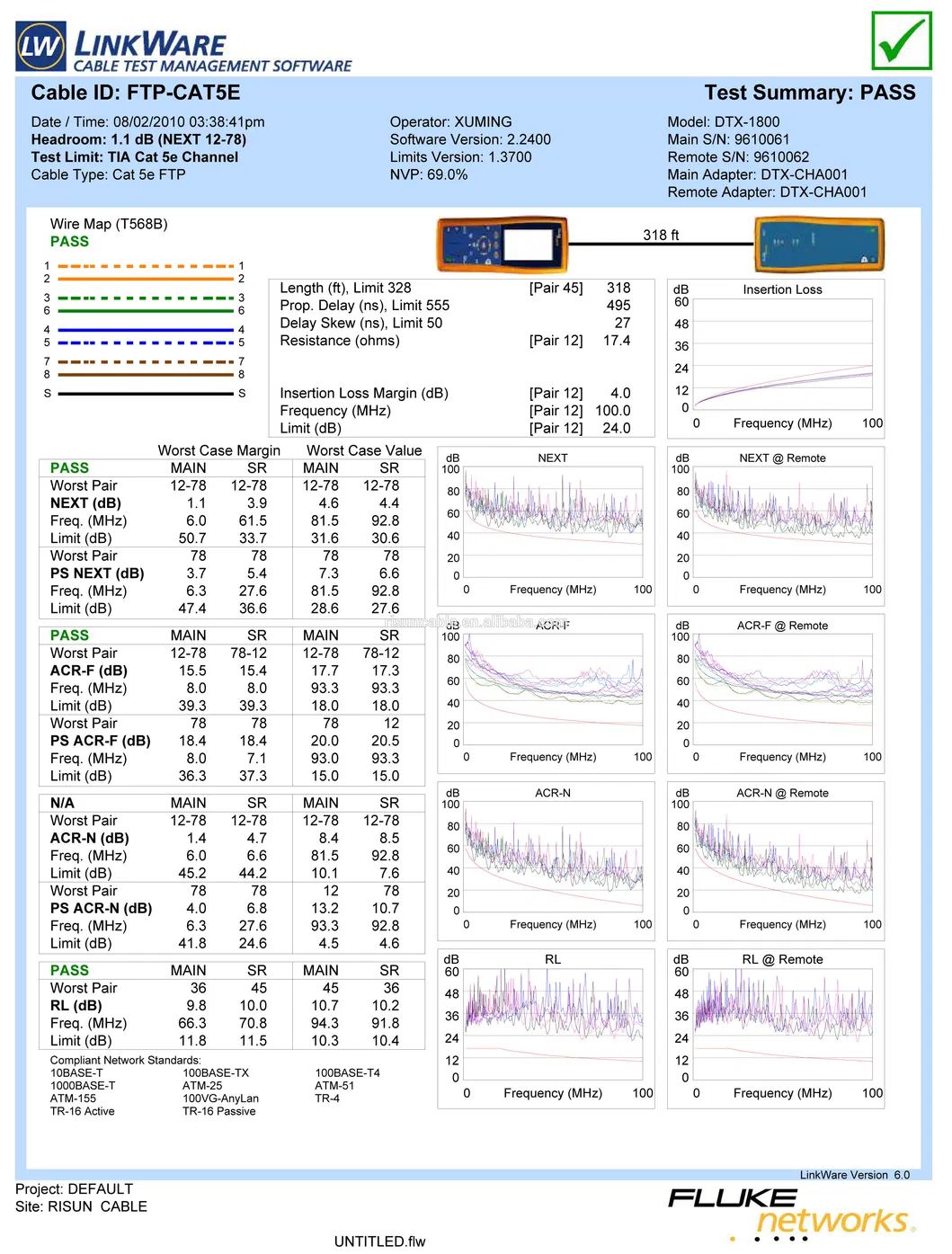

c)Cables produced by Risun cable Company are approved to international third party bodies including Fluke Test,CE,ETL,RoHS and CPR.
d)For all your cable requirements we have stock available for immediate despatch, for large shipments we can deliver direct from our factories.
e)We all hold the principle that customer comes first.
a)We are an experienced factory.As the LARGEST BUYER of European Market(JinNan area,Lin'an).We are a leader in producing cables with high quality and competitive price since 2007
b)All our cables are manufactured in production facilities accredited with full traceability ISO 9001 Management Systems for your assurance of quality product
c)Cables produced by Risun cable Company are approved to international third party bodies including Fluke Test,CE,ETL,RoHS and CPR.
d)For all your cable requirements we have stock available for immediate despatch, for large shipments we can deliver direct from our factories.
e)We all hold the principle that customer comes first.

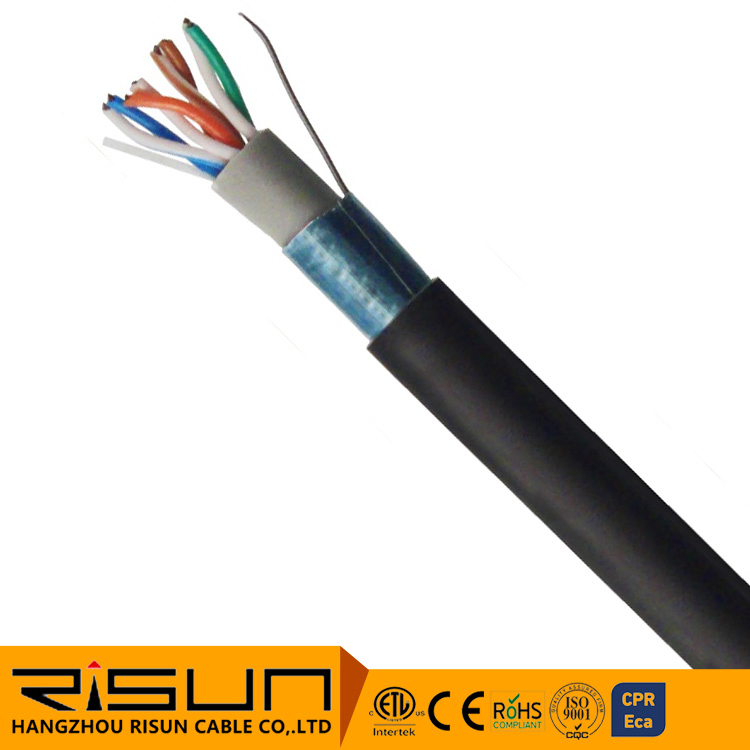

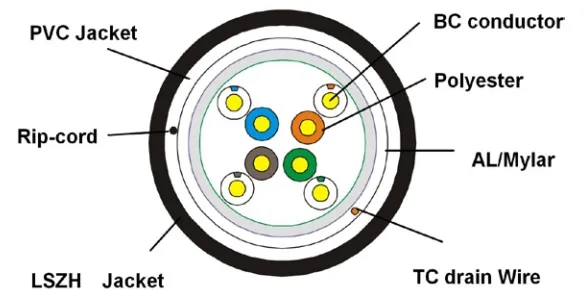

Cat5E Outdoor Direct Burial F/UTP Waterblock Tape Black UV CMX
| F/UTP CAT5E solid | |
| Conductor Size | 24AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene (HDPE) |
| Insulation Diameter | 0.88 ± 0.03mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Jacket Rip Cord | Yes |
| Outer Shield Material | AL Foil/Mylar |
| Drain Wire | Tinned Copper 0.45mm |
| Outer Jacket Material | LSZH |
| Outer Jacket Diameter | 6.6mm ± 0.5mm |
| Application | • 10/100/1000Base-T • 100Base-VG • 155 Mbps and 622-Mpbs ATM • Other high-performance applications ▫ Outside Plant ▫ Direct Burial ▫ Aerial |
Mechanical Characteristics:
| Storage Temperature Range: | -30~+60 |
| Installation Temperature Range | -40~+60 |
| Operating Temperature Range | -40~+60 |
| Bulk Cable Weight | N/A / 1000FT |
| Max. Recommended Pulling Tension | N/A |
| Min. Bend Radius/Minor Axis | N/A |
| Min. Bend/Installation | N/A |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | ≥10.0 |
| Aging Elongation | ≥125 |
| Aging Condition | 100°C x 24hrs x 10Days |
| After Tensile Strength | ≥8.0 |
| Aging Elongation | ≥100 |
| Cold Bend | No Visible Cracks (-20°C ± 2°C x 4h) |
Electrical Characteristics:
| Maximum CapacitanceUnbalance to earth | 330 (pf/100m) |
| Nominal Velocity of Propagation | N/A |
| Maximum Delay | 537.60 @ 100MHz (ns/100m) |
| Maximum Delay Skew | ≤ 45 (ns/100m) |
| Maximum Conductor DC Resistance | 9.5 (@ 20°C OHm/100m) |
| Maximum Operating Voltage - UL | 300V RMS |
| Maximum DCR Unbalanced | 5% (@ 20°C) |
| Attenuation (Maximum) | ▫ 22.0dB/100m (328.1ft.) @ 100MHz ▫ 44.9dB/100m (328.1ft.) @ 350MHz |
| 1.0 - 100MHz Impedance | 100Ω ± 15% |
| NEXT (Minimum) | ▫ 35.3dB/100m (328.1ft.) @ 100MHz ▫ 27.1dB/100m (328.1ft.) @ 350MHz |
| PS-NEXT (Minimum) | ▫ 32.3dB/100m (328.1ft.) @ 100MHz ▫ 24.1dB/100m (328.1ft.) @ 350MHz |
| Return Loss (Minimum) | ▫ 20.1dB/100m (328.1ft.) @ 100MHz ▫ 16.0dB/100m (328.1ft.) @ 350MHz |

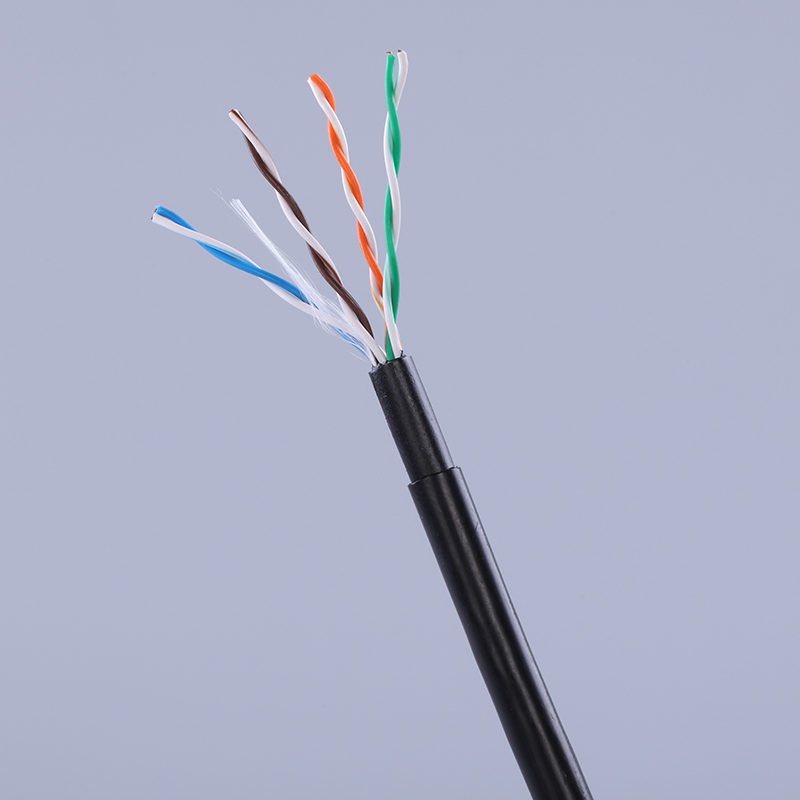

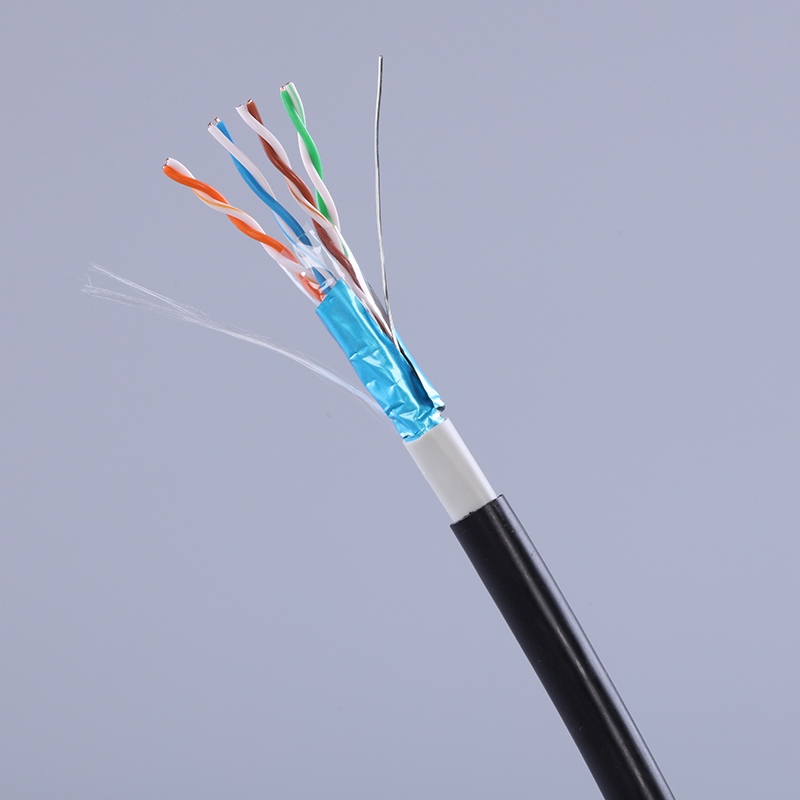

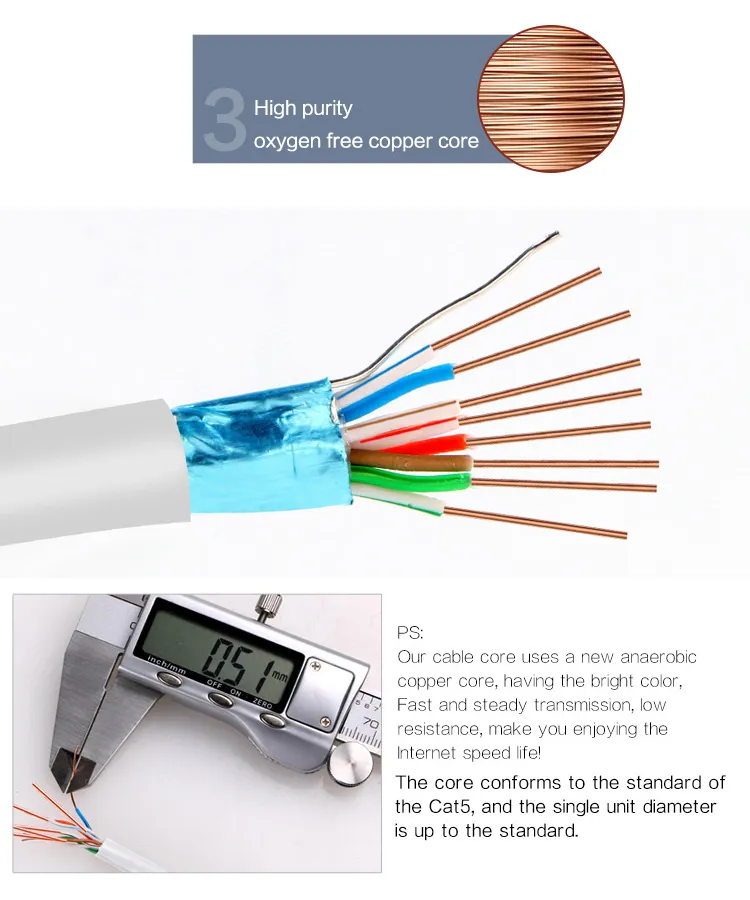

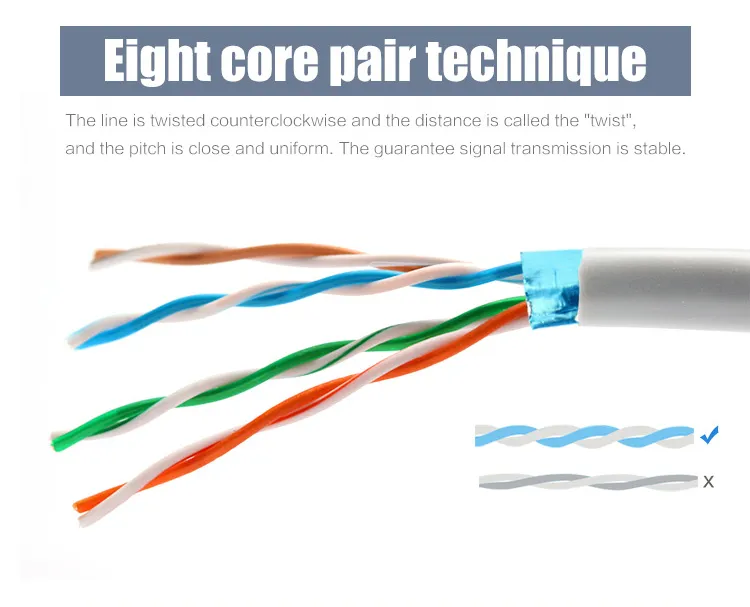

Details Images:

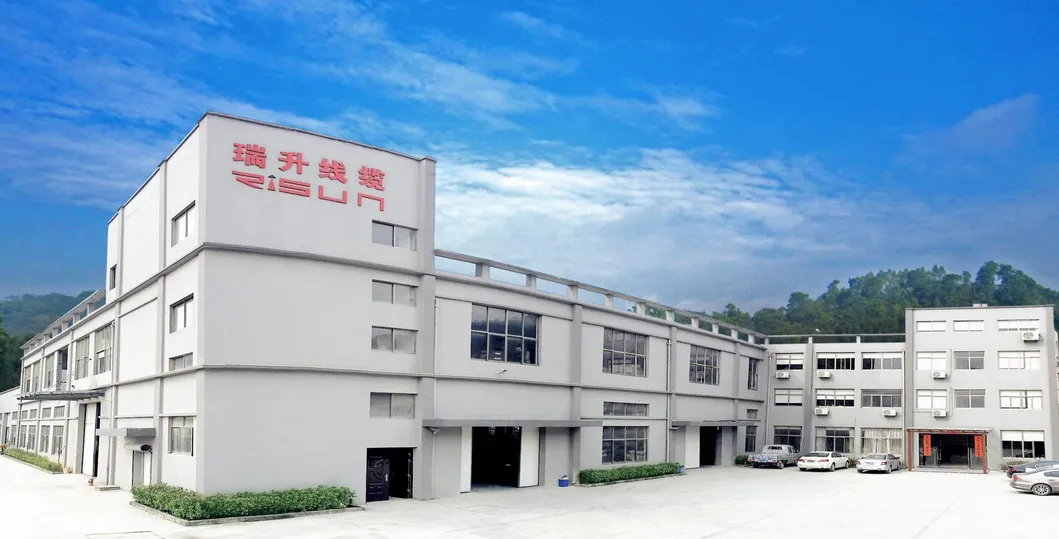

Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
