Cabor Kx7 Coxial Cable Satellite Wire Coaxial Cable Kx7 Cabl Coaxial
Product Descriptionkx6 with power Inner Conductor (mm): 7*0.20mm BCDielectric (mm): 3.66± 0.10 SPEShield:CCA/AL Braids 128*0.12CCAPower wire:2*7*0.38 mm CCAPower Jackets: Black & Red PE Big Out PVC Jackets Green colorPacking : 100M/Coil 4Coils/CTN,300M/Wood drum 500M/Wood drum Produc......
Send Inquiry
Product Description

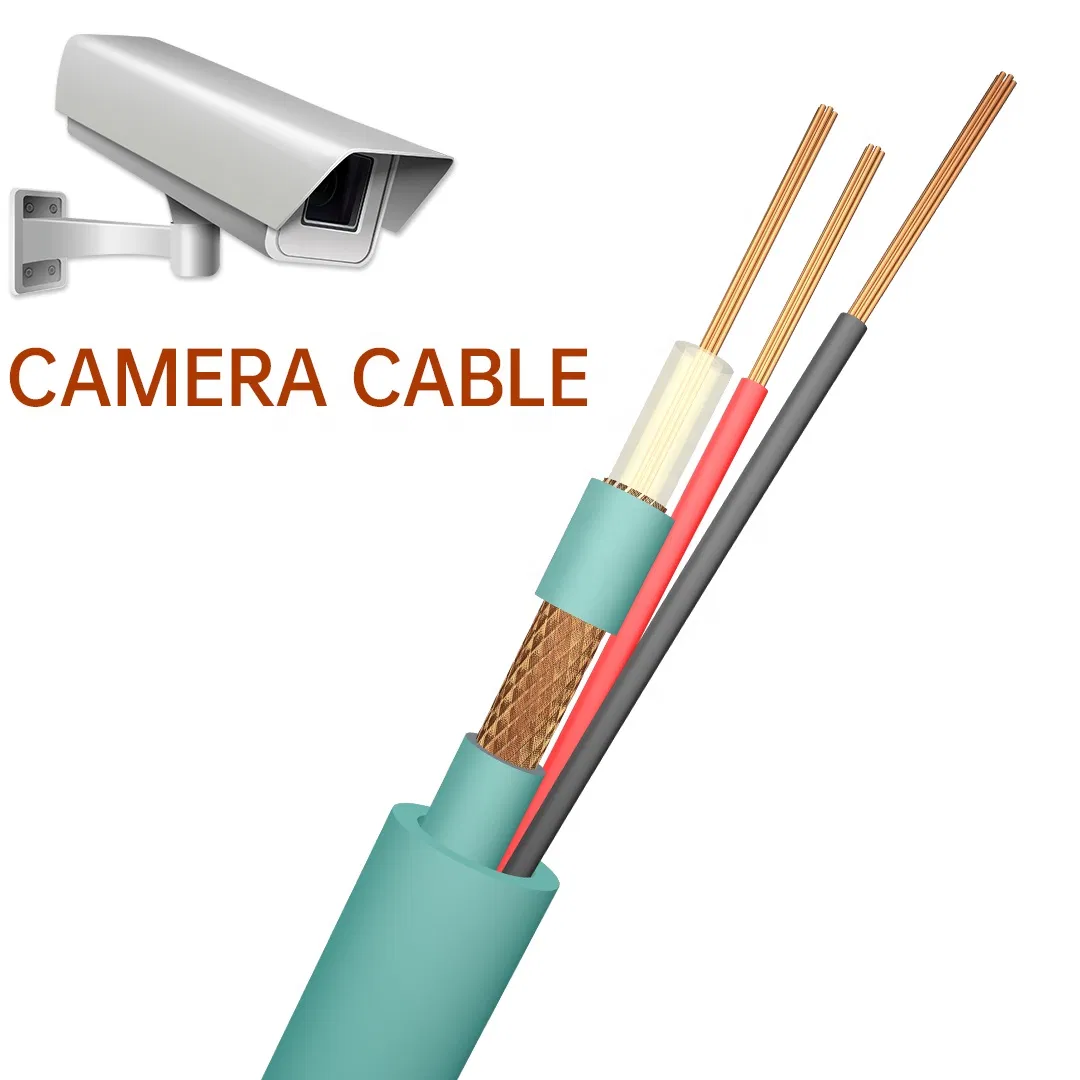

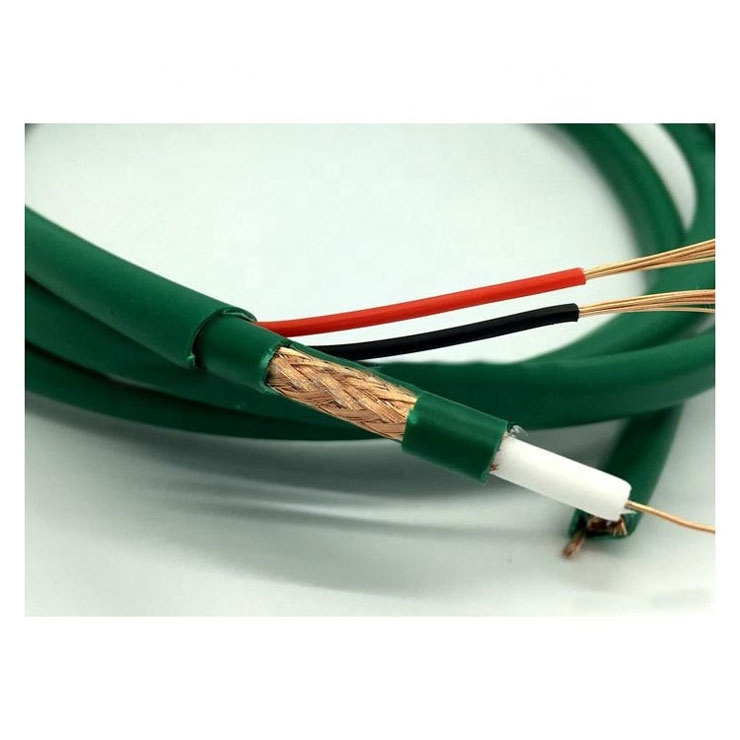

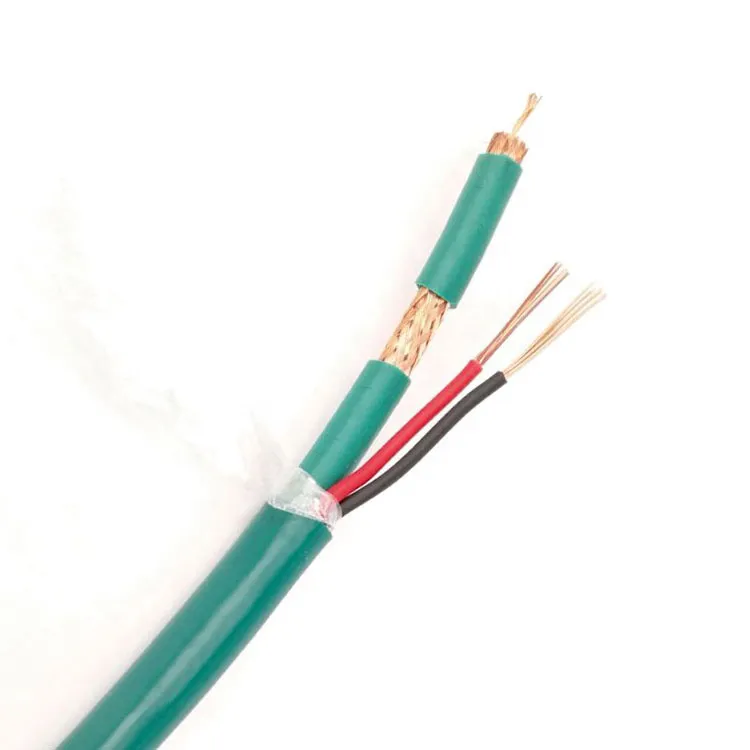

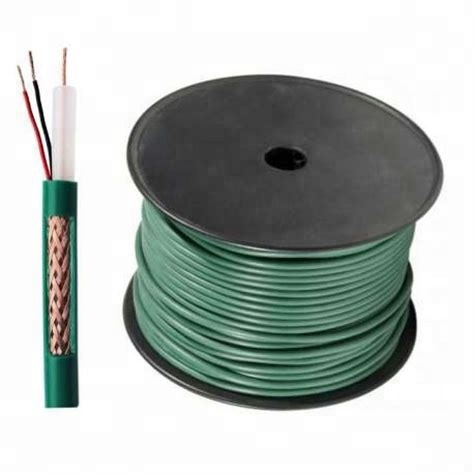

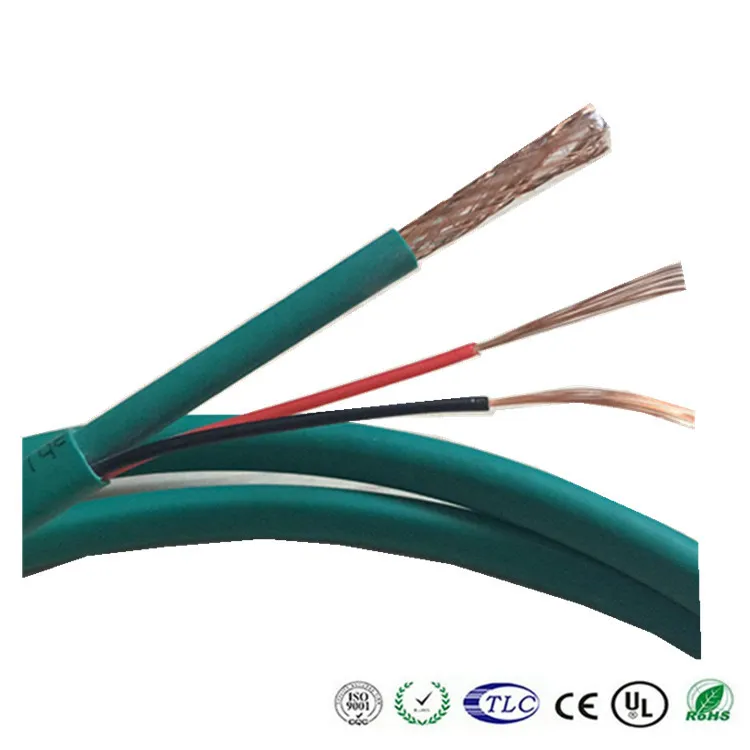

- kx6 with power
Inner Conductor (mm): 7*0.20mm BC
Dielectric (mm): 3.66± 0.10 SPE
Shield:CCA/AL Braids 128*0.12CCA
Power wire:2*7*0.38 mm CCA
Power Jackets: Black & Red PE Big Out PVC Jackets Green color

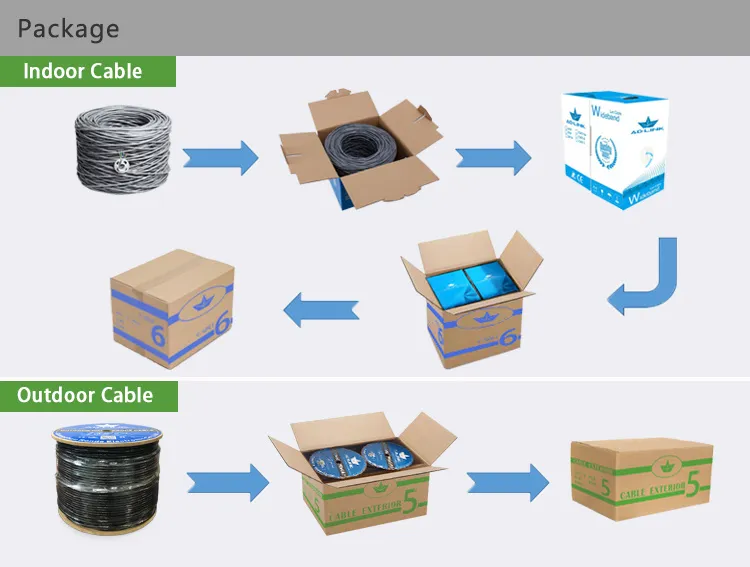

Packing : 100M/Coil 4Coils/CTN,300M/Wood drum 500M/Wood drum
ELECTRICAL CHARACTERISTICS | ||
Impedance | 75Ohm±3 | |
Nominal Capacitance(pF/m) | 67 | |
Propagation velocity ration | 66% | |
Insulation resitance | 66% | |
ATTENUATION at 20ºC (≤dB/100m) | 10MHz | 3.80 |
50MHz | 8.30 | |
100MHz | 11.80 | |
200MHz | 17.00 | |
500MHz | 27.10 | |
800MHz | 35.70 | |
1000MHz | 41.50 | |
