75ohms CATV Quad Shield RG6 (CE, RoHS, CPR ) Coaxial Cable
Coaxial Cable Rg58/Rg59/Rg6/Rg11Application:1) Inner conductor: CCA/CCS/CU2) Dielectric: SPE/FPE3) AL Foil: Bonded, non-bonded, single, double4) Braiding wire material: Cu, Al-Mg, TC5) Braiding wire diameter: 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm6) Braiding net: 32,48, 64, 72, 80, 96, 112,1......
Send Inquiry
Product Description
Coaxial Cable Rg58/Rg59/Rg6/Rg11
Application:

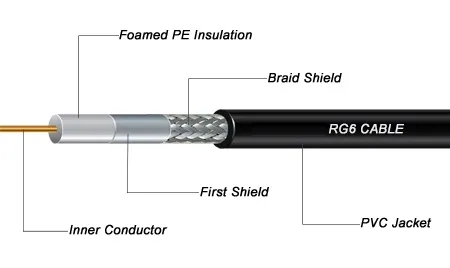

1) Inner conductor: CCA/CCS/CU
2) Dielectric: SPE/FPE
3) AL Foil: Bonded, non-bonded, single, double
4) Braiding wire material: Cu, Al-Mg, TC
5) Braiding wire diameter: 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
6) Braiding net: 32,48, 64, 72, 80, 96, 112,128 and more
7) Coverage: 40%, 50%, 60%, 80% and more
8) PVC Degree: 65, 68, 70, 75
9) color: Black, white or grey
10) OEM and customers designation are welcome
Packing

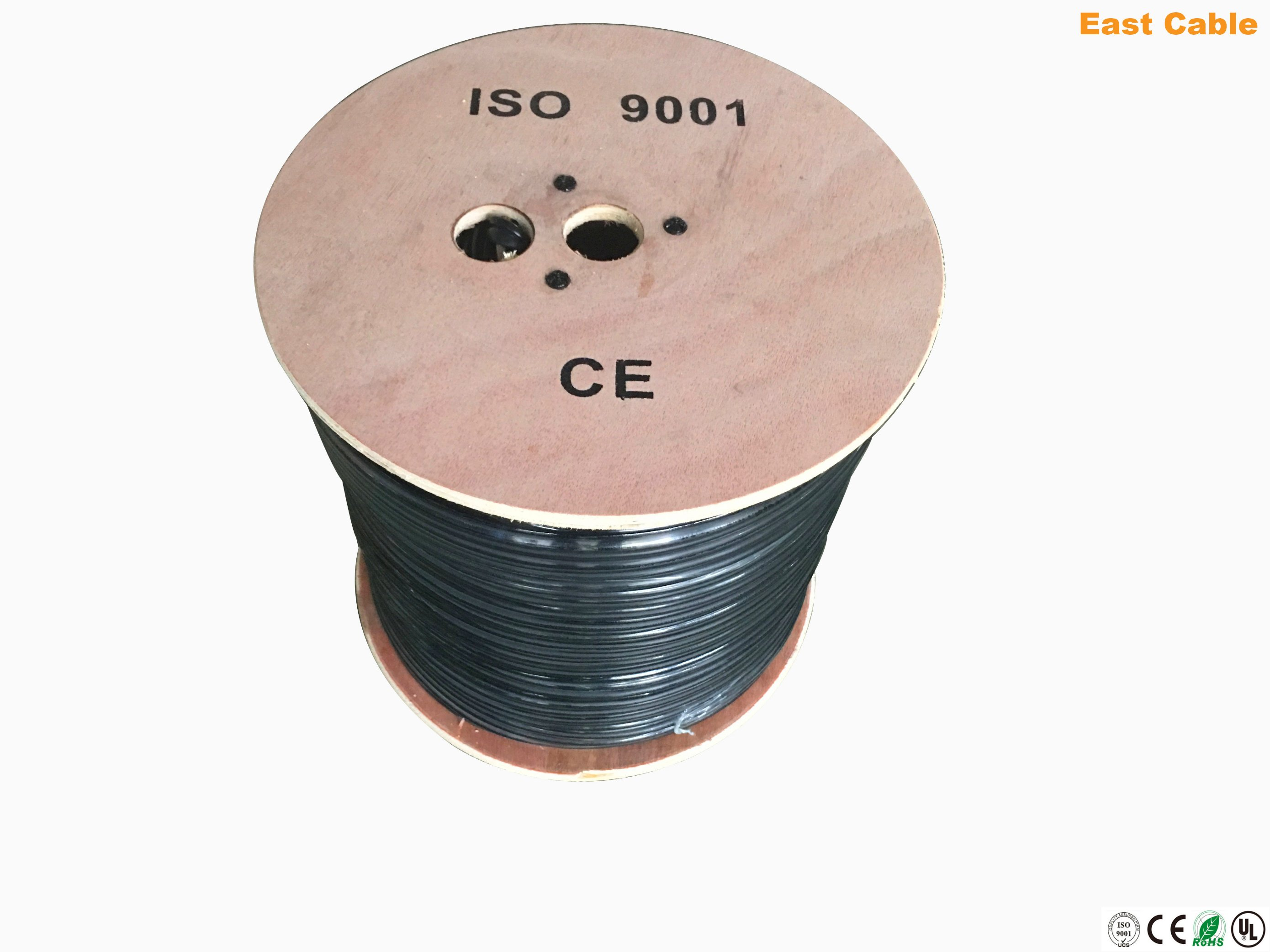

1) Inner packing: 100m in PE film, 100m in plastic/wood spool, 305m/wood drum, 500m/wood drum
2) Outer packing: Carton, wooden drum
3) Other packing available according to clients requests.
If you have any inquiry of coaxial cable, please contact with us!!!
