48 Core Sm Armoured Optical Fiber Cable Gyty53

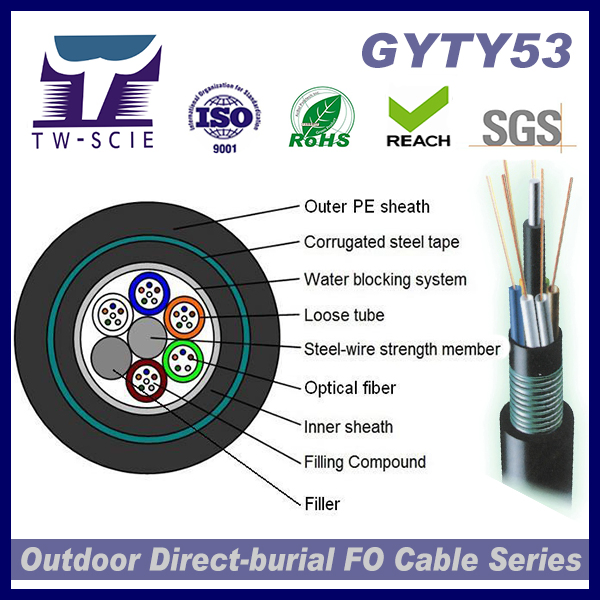

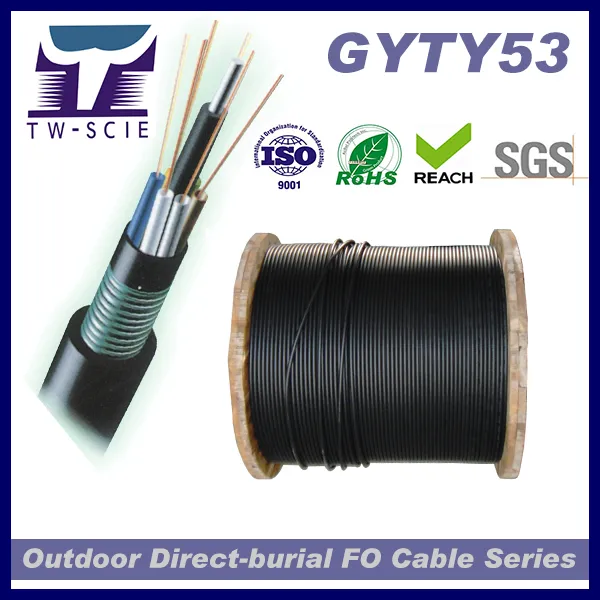

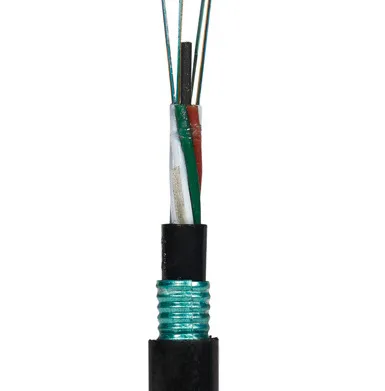

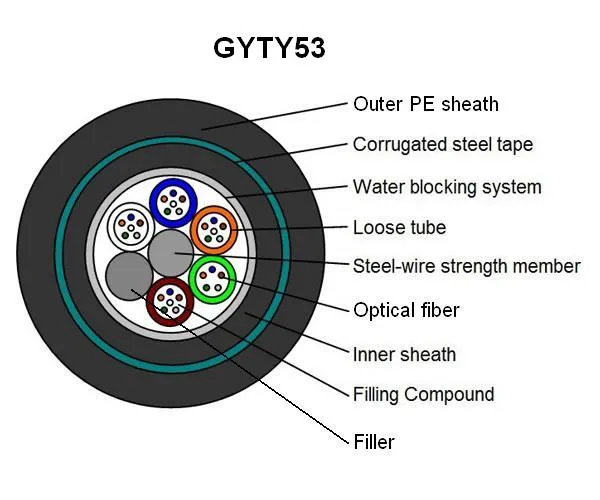

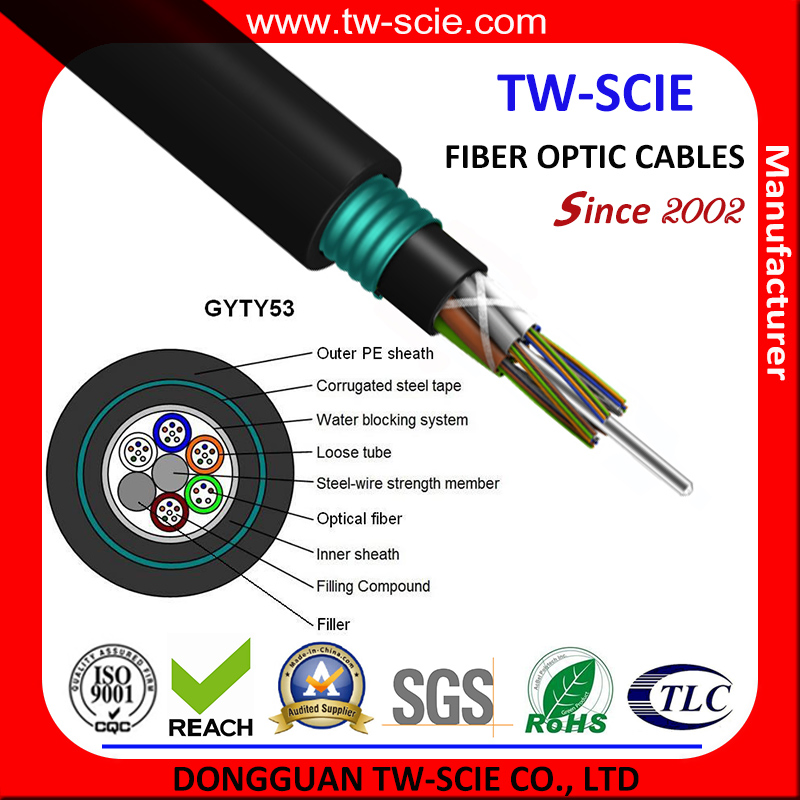

GYTY53 Outdoor Armored Optical Fiber Cable double PE coatedThe fibers,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE sheath.
GYTY53 optic fiber cable Technology Specification:
Features:
Standard color identification of fiber
Cable design
More Pictures:
Company View:
GYTY53 Outdoor Armored Optical Fiber Cable double PE coated
The fibers,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE sheath.
Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable form ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
6. Loose tubs filling compound
7. Corrugated Steel Tape enhancing mostiure-proof
8. Water-blocking material
GYTY53 optic fiber cable Technology Specification:| Technical data: | ||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-24 | 12.6 | 185 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 12.9 | 195 | ||||||
| 38-60 | 13.4 | 200 | ||||||
| 62-72 | 13.9 | 230 | ||||||
| 74-96 | 15.5 | 275 | ||||||
| 98-120 | 17 | 320 | ||||||
| 122-144 | 18.4 | 365 | ||||||
| 146-216 | 18.9 | 385 | ||||||
| 218-240 | 22.1 | 495 | ||||||
| 242-288 | 24.3 | 580 | ||||||
