Product Description
1. Product Description

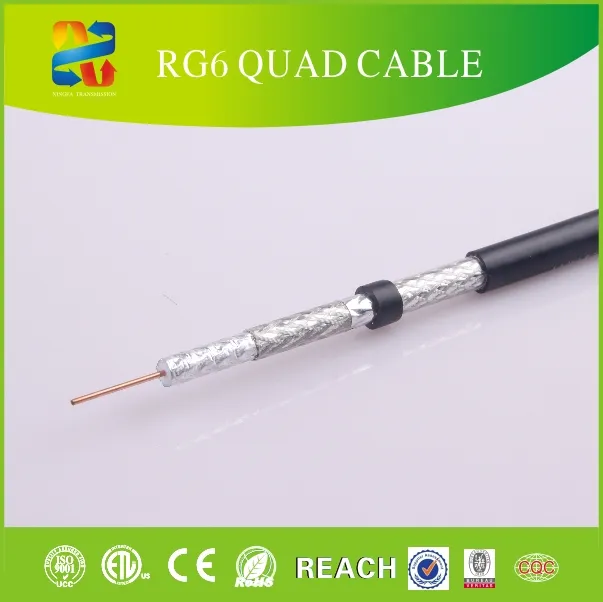

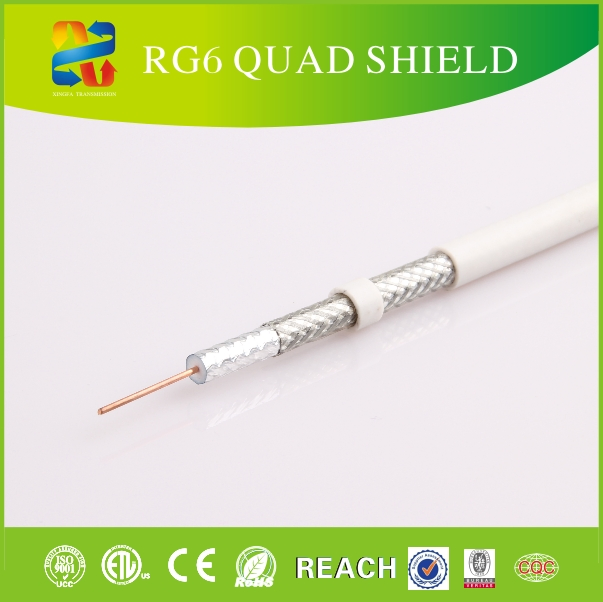

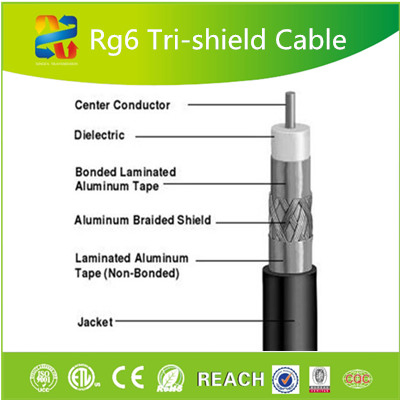

1.02mm CCS 21%+4.57mm Foam PE+Bonded Al Foil+60% Al Braiding+Double Al Foil+45% Al Braiding+7.62mm PVC Jacket.
Remarks
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
2. Characteristics
Impedance(Ω) | 75±3 |
Velocity of Propagation(%) | 85 |
Capacitance(pF/m) | 50 |
Structural Return Loss(≥dB) | 20 |
Attenuation [@ 68° F. (20° C)] | |
Frequency(MHz) | Maximum(dB/100m) |
5 | 1.9 |
55 | 5.25 |
187 | 9.35 |
300 | 11.64 |
450 | 14.43 |
600 | 16.73 |
750 | 18.34 |
865 | 20.01 |
1000 | 21.49 |

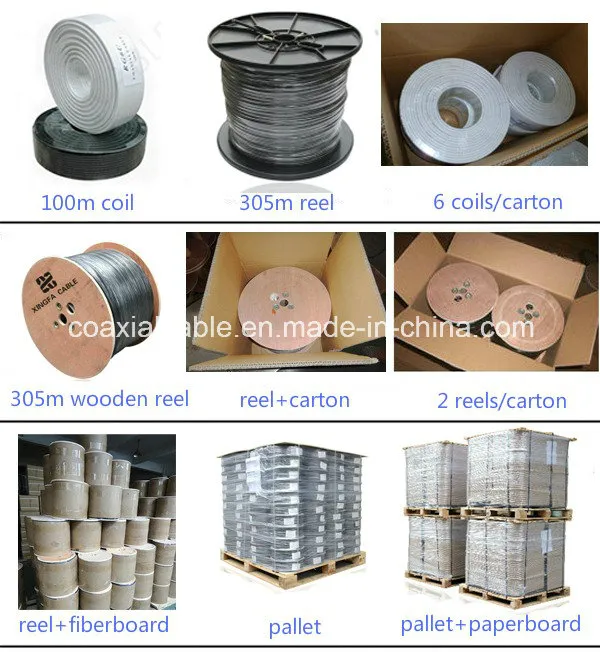

3. Packing
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
4.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.
