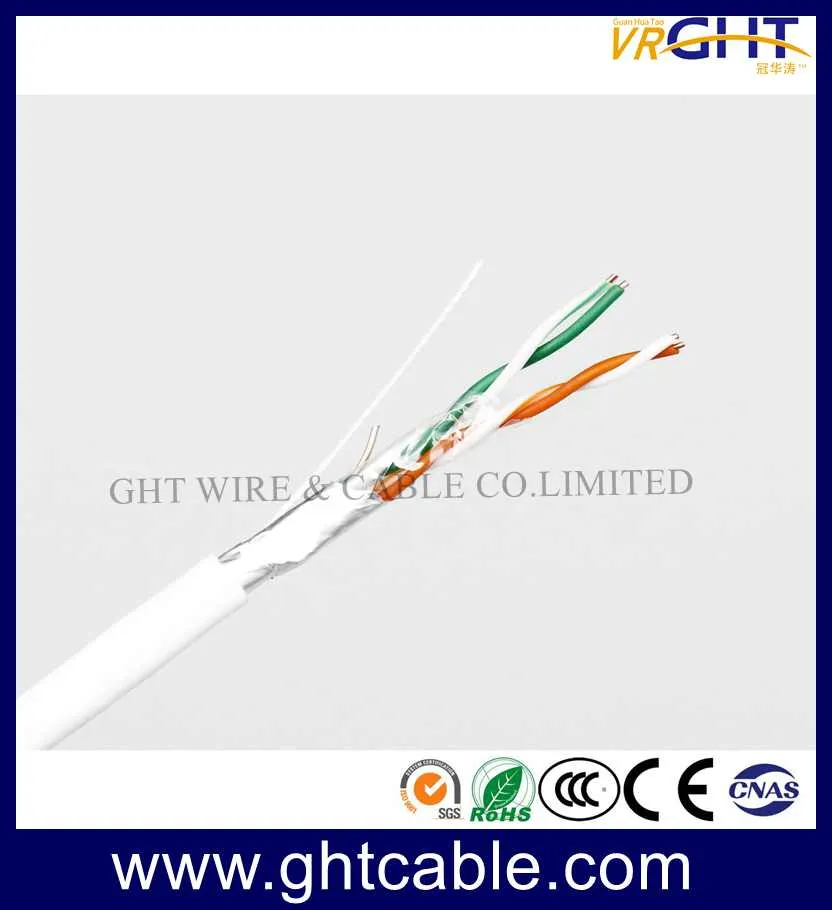

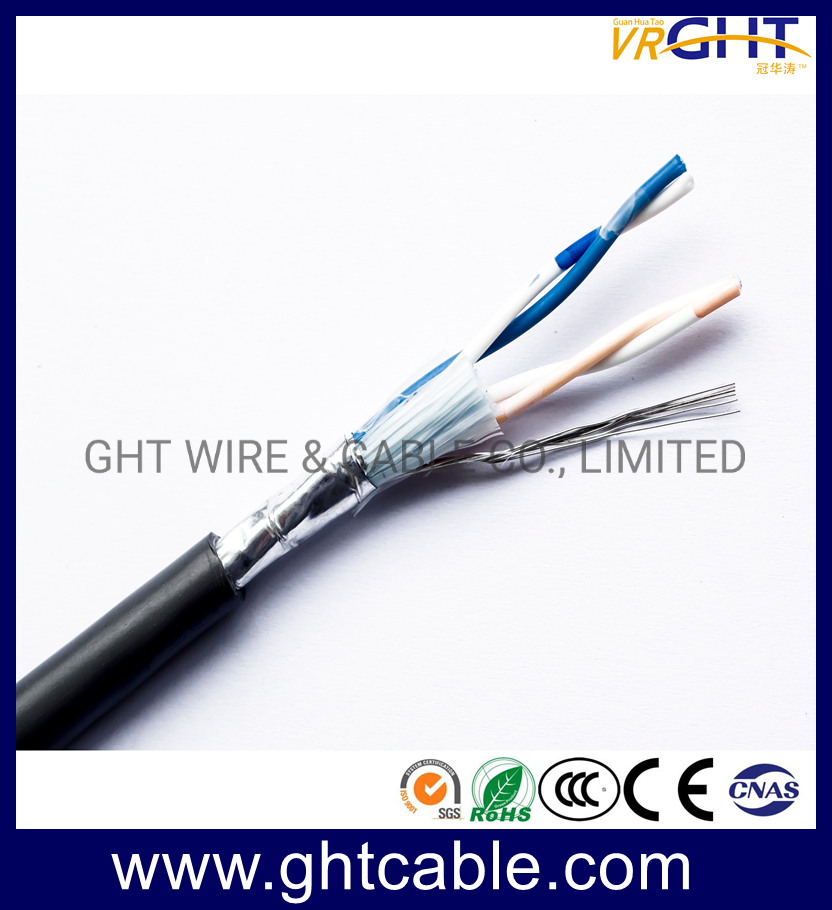

2pair 0.5mm Bc FTP Telephone Cable
Product DescriptionTelephone cable/ Cat3 CableConfiguration:1. Conductor: 0.50±0.01mm(24AWG) Bare copper2. Insulation: 0.90±0.03mm HDPE3. Cores/Pairs: 2/1 up to 100/504. Sheath: According to pairs PVC/LSOH/PEOptions: Jelly Compound, Jacket: UV, FR, RoHS complied. Mechanical Pro......
Send Inquiry
Product Description
Product Description
Telephone cable/ Cat3 Cable
Configuration:
1. Conductor: 0.50±0.01mm(24AWG) Bare copper
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 2/1 up to 100/50
4. Sheath: According to pairs PVC/LSOH/PE
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
Mechanical Properties:
Electrical Properties:
Technical Performance:
FACTORY PRESENTATION & CERTIFICATE
Telephone cable/ Cat3 Cable
Configuration:
1. Conductor: 0.50±0.01mm(24AWG) Bare copper
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 2/1 up to 100/50
4. Sheath: According to pairs PVC/LSOH/PE
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
Mechanical Properties:
Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile Strength | Min 1.68kg/mm² |
Electrical Properties:
Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
Technical Performance:
Attenuation | RL | Next | PS Next | |
| (MHZ) | (dB/100m) | (dB) | (dB) | (dB) |
| 1MHZ | 2.6 | 12 | 41.3 | 41.3 |
| 4MHZ | 5.6 | 12 | 32.3 | 32.3 |
| 8MHZ | 8.5 | 12 | 27.8 | 27.8 |
| 10MHZ | 9.7 | 12 | 26.3 | 26.3 |
| 16MHZ | 13.1 | 12 | 23.3 | 23.3 |
FACTORY PRESENTATION & CERTIFICATE
