Home > Products > Communication Cable > 2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm
2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm
  • 2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm
  • 2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm
  • 2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm

2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm

New products unalloy galvanized steel wire strand1) Standard: GB/JISG/ASTM2) Diameter(mm): 6~28mm3) Nominal Tensile Strength: 1570, 1770, 1370/1770N/mm2 double strength4) Main Application: For elevator and lifting, also can be used in oil well drilling, blast furnace hoisting, belt conveyer, cablewa......

Send Inquiry

Product Description

2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm2021 New Products Unalloy Galvanized Steel Wire Strand-1*7/4.76mm



New products unalloy galvanized steel wire strand

1) Standard: GB/JISG/ASTM
2) Diameter(mm): 6~28mm
3) Nominal Tensile Strength: 1570, 1770, 1370/1770N/mm2 double strength
4) Main Application: For elevator and lifting, also can be used in oil well drilling, blast furnace hoisting, belt conveyer, cableway towing, cable car, ship loading and unloading. The metal core wire rope can be used for heat shift steel rolling and excavator hoisting.

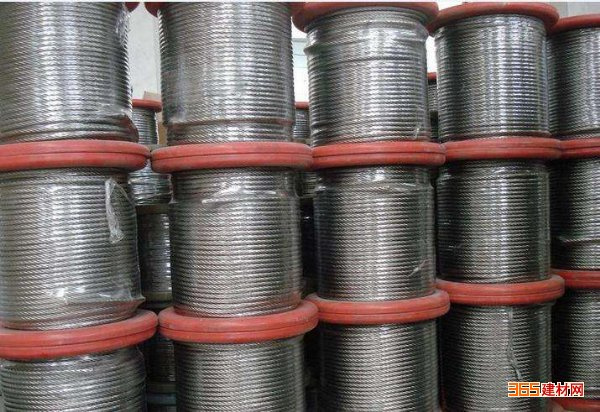

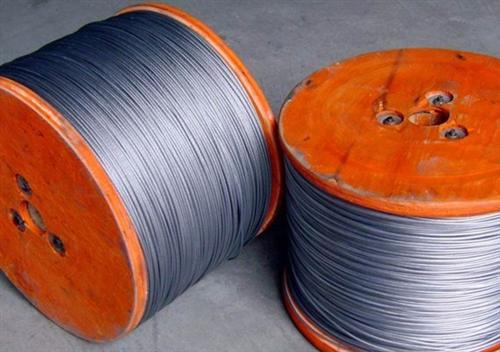

Our packing
Plastic cloth inner, plastic weaving cloth outer
Plastic cloth inner, hessian cloth outer
Carton, wooden pallet
Weight/coil; 400g, 1kg, 2 kg, 5kg, 6kg...200kg, it can also be packed as per your requirements. Attention: One head one roll, in single length, without breaks
Quantity in one 20ft container: 25 tons generally different sea company, different weight limited<o: P>
Production time for 25 tons: Within 5 days


Delivery Date: 15 days after deposit

Application: Use for mattress, industry spring, spoke, umbrella stand and nail.

Manufacture standard: The top quality for each standard. JIS, EN, DIN, GB, ASTM and BOST standard available.
Company information
  we have more than 100 staff members. With total assets of more than CNY10 million, our production capacity is 25, 000 tons metal products per year.

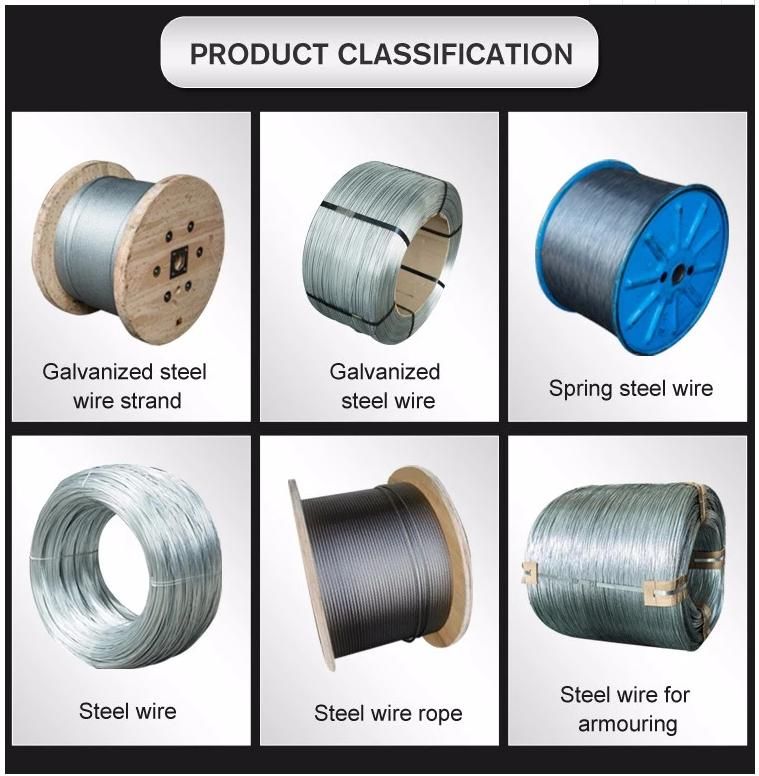

The products we produce and sell are more than 400 types. Our mainly products are carbon spring steel wires, galvanized steel wires, zinc-coated steel wire strands, carbon spring steel wires, galvanized steel wires, and zinc-coated steel wire strands for telecommunication cable and fiber optics. We can produce all the products according to international standards or users' standard for national standards.



Identity of galvanized steel wire Strand
Nominal Dia.StrandNumber of WiresDiameter of WiresMass ApproximatelyMinimum Breaking strength,1bf(KN)
GeneralHighExtra High
(mm)  LB/1000FT(KG/M)
1/8(3.18)70.041(1.04)32(48)54013301830
5/3270.052(1.32)51(76)87021402940
3/16(4.76)70.062(1.57)73(109)115028503990
7/32(5.56)30.104(2.64)88(131)14003500490
7/32(5.56)70.072(1.83)98(146)154038505400
1/4(6.35)30.120(3.05)117(174)186047306740
1/4(6.35)70.080(2.03)121(180)190047506650
9/32(7.14)30.130(3.30)137(204)208052607500
9/32(7.14)70.093(2.36)164(244)257064008950
5/16(7.94)30.145(3.68)171(255)249063509100
5/16(7.94)70.104(2.64)205(305)3200800011200
3/8(9.52)70.165(4.19)220(328)3330836011800
3/8(9.52)30.120(3.05)273(407)45201080015400
7/16(11.11)70.145(3.68)399(595)57001450020800
1/2(12.70)70.165(4.19)517(770)74001880026900
1/2(12.70)190.100(3.54)504(751)76201910026700
9/16(14.29)70.188(4.78)671(1000)96002450035000
9/16(14.29)190.113(2.87)637(949)69402410033700
5/8(15.88)70.207(5.26)813(1211)116001960042400
5/8(15.88)190.125(3.18)796(1186)110002810040200
3/4(19.05)190.150(3.81)1155(1721)160004080058300
7/8(22.22)190.177(4.5)1581(2356)219005580079700
1(25.40)190.200(5.08)2073(3089)2870073200104500
1(25.40)370.143(3.63)2057(3065)2830071900102700
9/8(28.58)370.161(4.09)2691(4010)3600091600130800
5/4(31.75)370.179(4.55)3248(4840)44600113600162200
