China 1000FT HDPE Sheath RJ45 Patch Cord Cat5e UTP LAN Network FTP Cat5 Ethernet Cable

Product Description

1000FT HDPE Sheath RJ45 Patch cord Cat5e UTP LAN Network FTP Cat5 Ethernet Cable

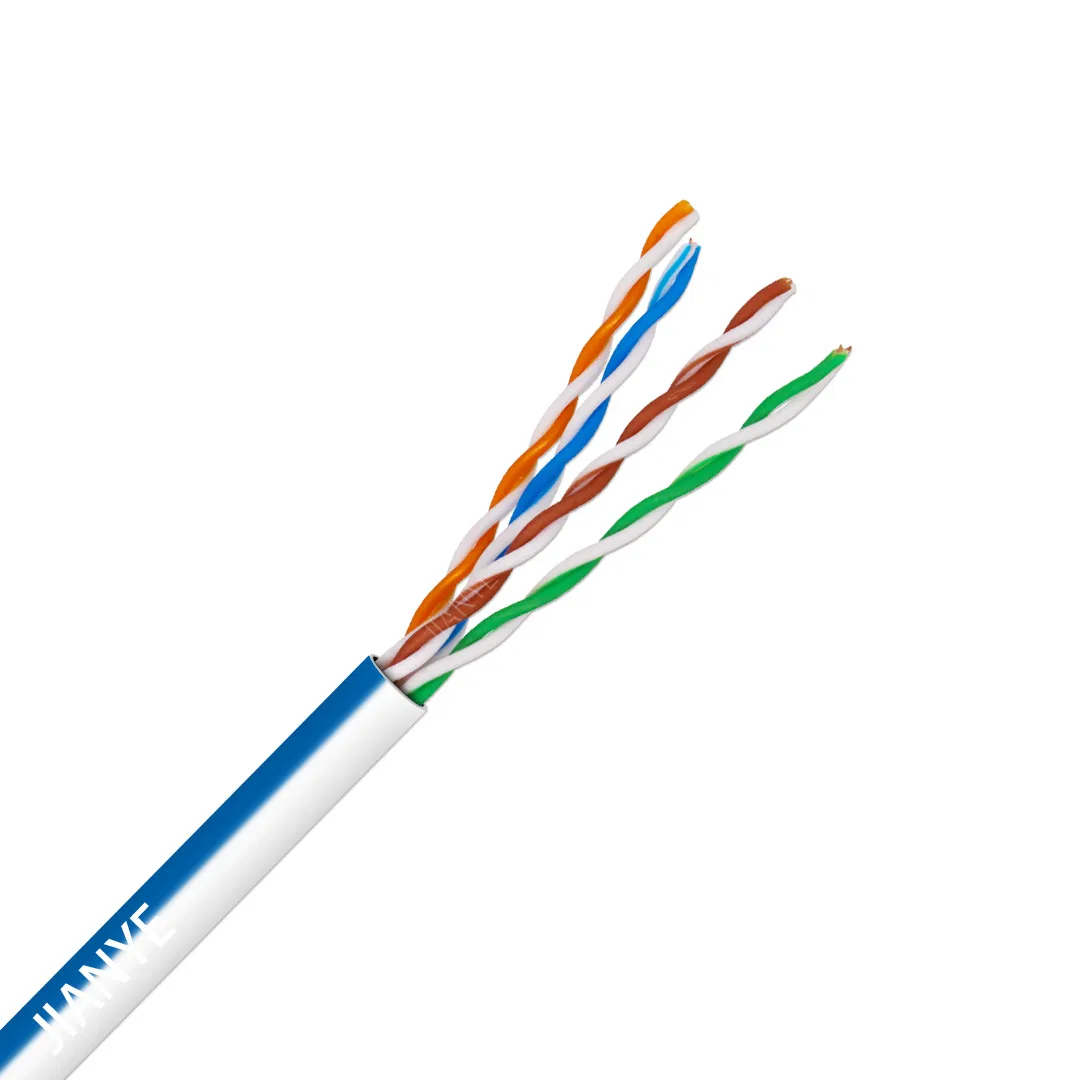

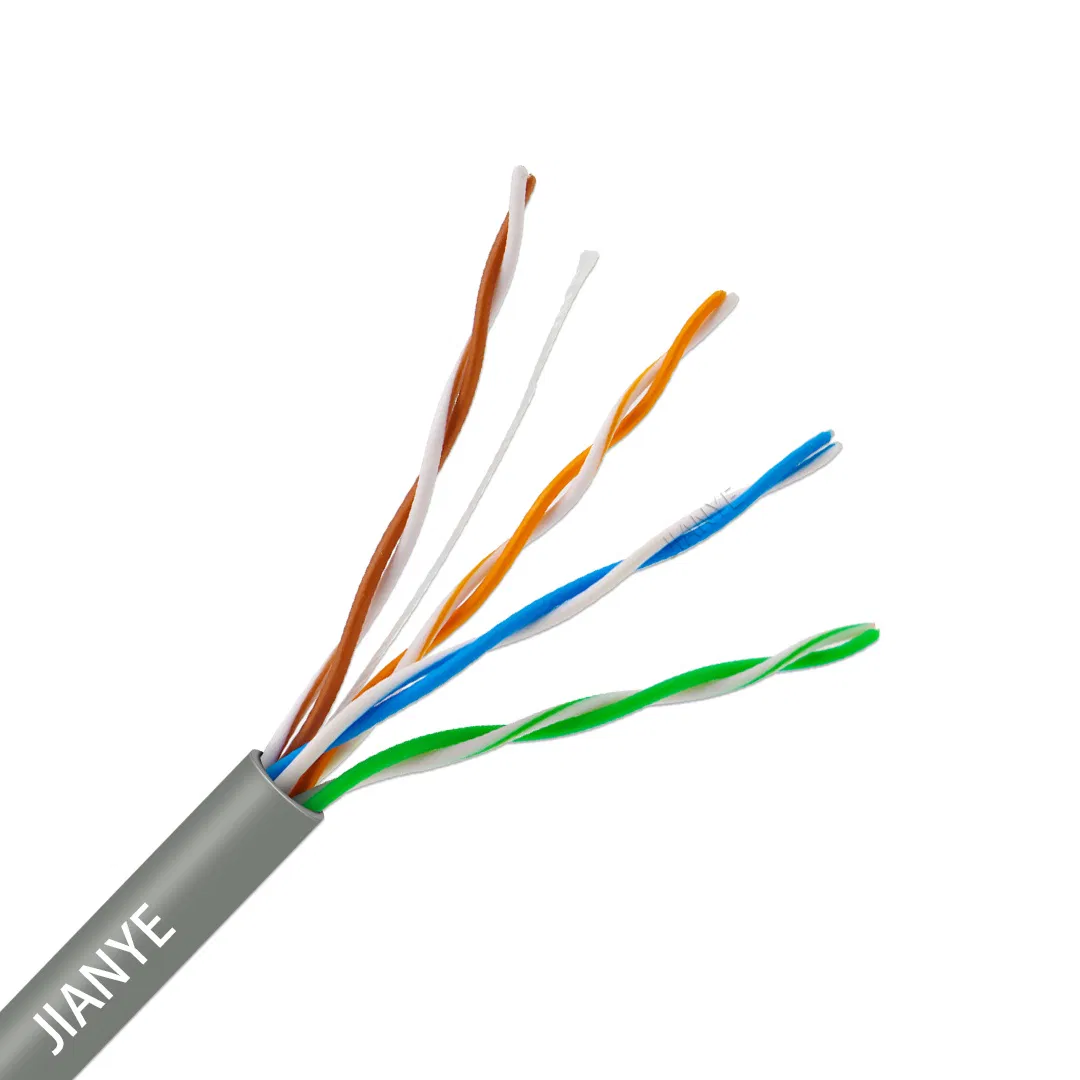

UTP Cat5E PVC 24 AWG Cable
Feature and Function
• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
• Compliant with RoHS 2.0.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
•conductor with less resistance, and better electrical properties and transmission performance.

Category	0.500 ± 0.005 mm, 24 AWG
Sheath printing	xxxxxx CAT5E U/UTP 4PR 24AWG PVC 75ºC VERIFIED TO ANSI/TIA-568-C.2 ****m mm/dd/yyyy Z
Reference standard	ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0

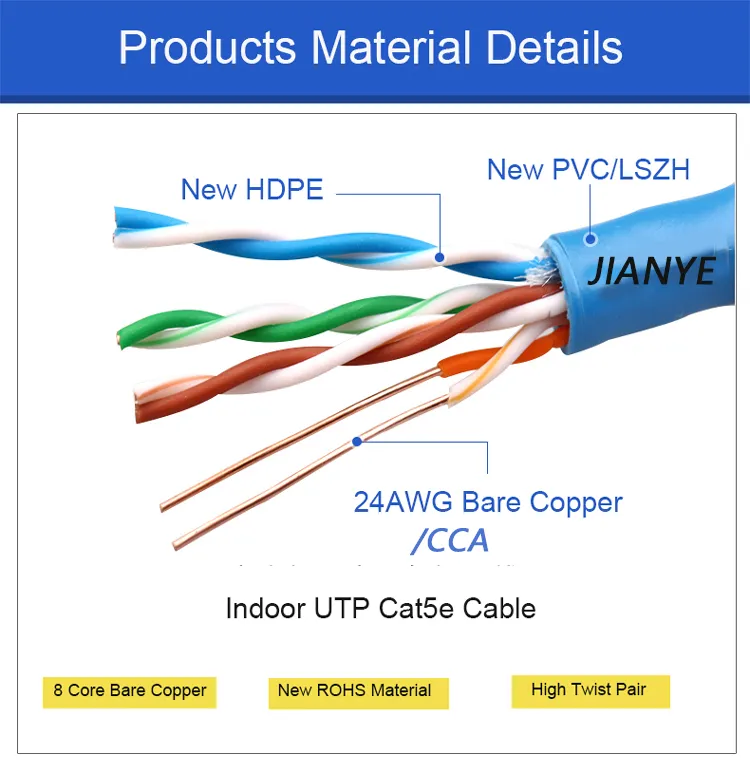

Conductor	Material	Solid-Bare Copper (99.95%)/CCA/CCAG
Conductor	Diameter	0.510 ± 0.005 mm, 24 AWG
Insulation	Material	HDPE
Insulation	Diameter	0.91 ± 0.04 mm
Sheath	Thickness	0.65 ± 0.05 mm
	Diameter	Diameter 5.30 ± 0.4 mm
	Material	PVC/PE/LSZH
	Color	According to your requirements
Rip-cord	YES
Separator	No
Sheath physical properties	Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
	Aging period	100°C × 24h × 10d
	After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)	1.0-100.0 MHz impedance	100±15
	1.0-100.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 9.5 Ω/100 m
	DC conductor resistance unbalance	≤ 5.0%

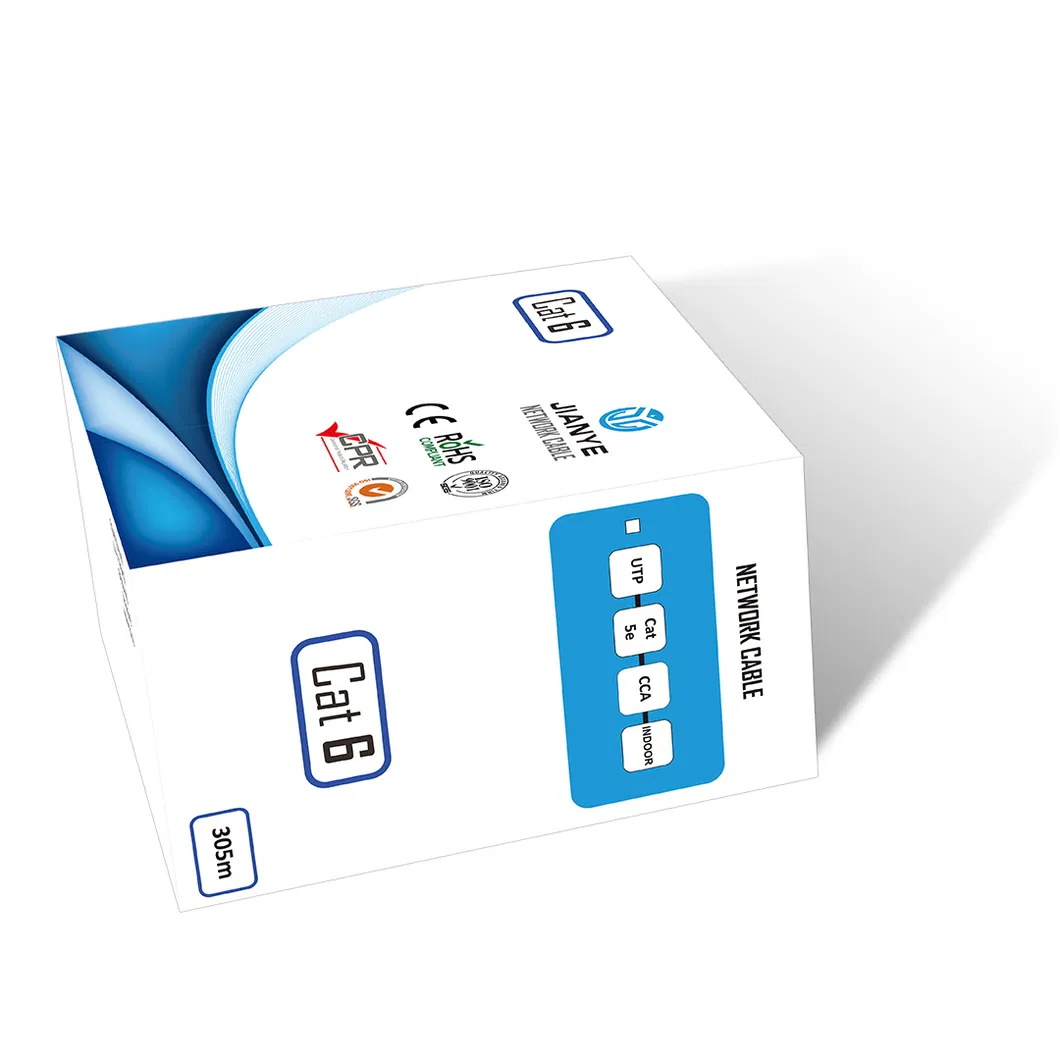

	Package dimension	350 mm (W) × 350 mm (H) × 200 mm (D)
	Weight	9.8 ± 0.5kg

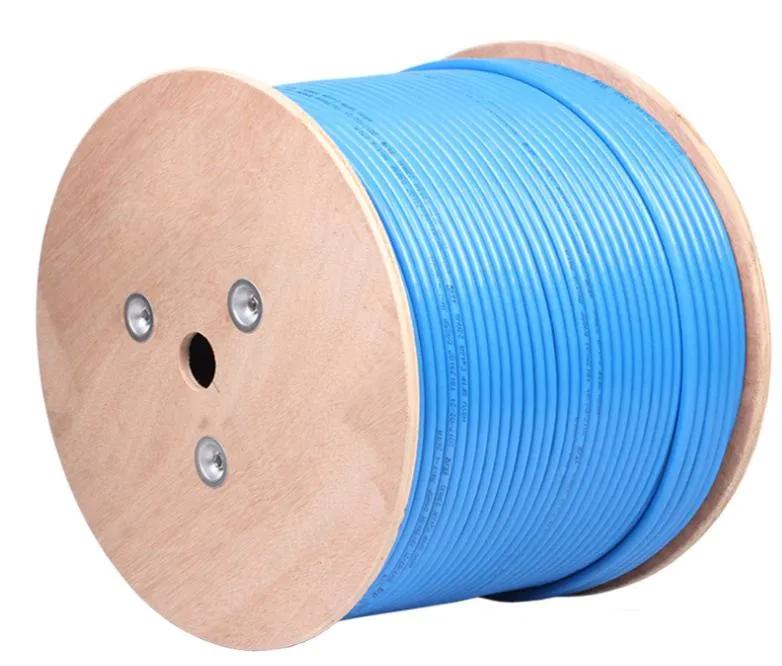

	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 75°C (-4°F to 167°F)
	Operating voltage	80 V
