Product Description

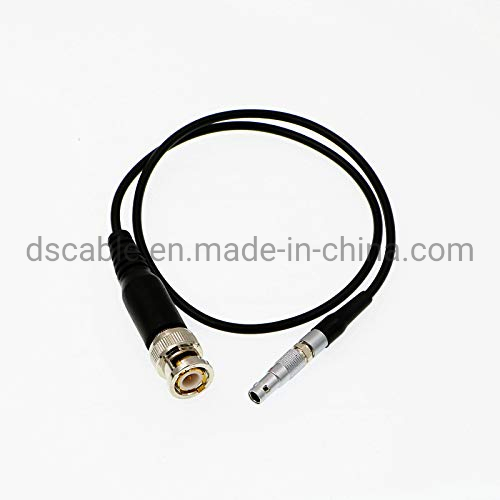

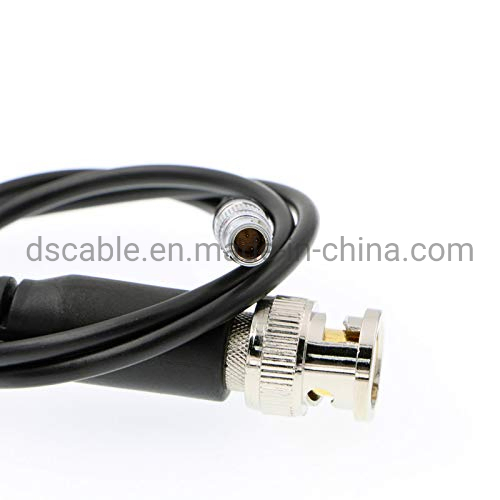

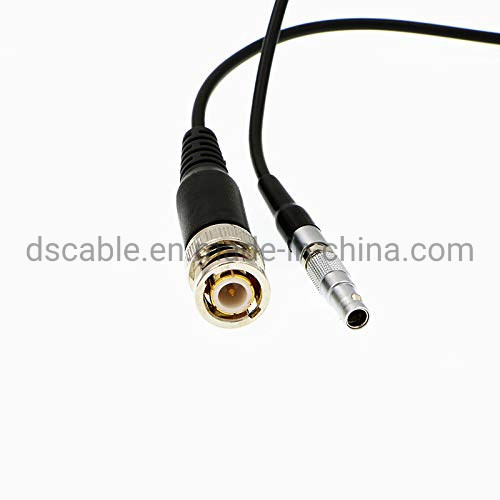

LEMO 0B 4 pin plug to BNC male cable

Description:

Connection Type	Push-pull self-latching 4 pin male connector to BNC plug
Cable Length	respect customer requirement
Accessory Type	Adapter, Distributor
Connection Gender	male (Cable), Male (Cable)
For Use With	Monitor
Protection degree	IP65
Interface	Video
Voltage Rating	30 V AC/DC
Orientation	Straight
Operating Temperature Range	-30 → +80 (Fixed) °C, -5 → +80 (Flexible) °C
Jacket Material	PVC
Current Rating	19 × 0.15 mmØ
Current Rating	4 A

B Series connector with thefollowing main features:

·Security of the push-pull self-latching system;

·Multicore types with 2 to 32 pins;
·Solder or PCB contacts(straight or elbow);
·High-density installation for space-saving;
·Multiple key options to avoid cross mating or similar connectors;
·360-degree screening for full EMC protection

·Mechanical properties and environmental factors:
·Endurance>5000 cycles
·Humidity.up to 95% at 60ºC
·Temperature range:-45ºC~+125ºC
·Resistance to vibration:10-20000Hz,15g
·Shock resistance:100g.6ms
·Salt spray corrosion test >48hrs
·Protection index:IP50

TGG. Straight plug,key(G)or keys (A...M and R),cable collet

Reference		Dimensions(mm)
Model	Series	A	L	M	S1	S2
FGG	001)	6.4	28.5	20.5	5.5	5
FGG	0B	9.5	36	26	8	7
FGG	1B	12	43	32	10	9
FGG	2B	15	50	38	13	12
FGG	3B	18	58	43	15	14
FGG	4B	25	75	57	21	20
FGG	5B	35	103	78.0	31	30

Other Models:

Jacket:

Series	Product number	Size (mm)
		jacket		Cable diameter
		A	L	max	Min
00	GMA.O0.028.DG	2.8	22	3.1	2.8
0B 0S	GMA.0B.030.DG	3.0	24	3.4	3.0
	GMA.0B.040.DG	4.0	24	4.4	4.0
	GMA.0B.045.DG	4.5	24	5.2	4.5
	GMA.0B.052.DG	5.2	24	5.6	4.5
1B 1S	GMA.1B.040.DG	4.0	30	4.4	4.4
	GMA.1B.045.DG	4.5	30	4.9	4.5
	GMA.18.054.DG	5.4	30	6.0	5.4
	GMA.1B.065.DG	6.5	30	7.0	6.5
2B	GMA.2B.050.DG	5.0	36	5.5	5.0
	GMA.2B.060.DG	6.0	36	6.5	6.0
	GMA.2B.070.DG	7.0	36	7.7	7.0
	GMA.2B.080.DG	7.8	36	8.8	7.8
	GMA.2B.085.DG	8.5	36	9.2	8.2
